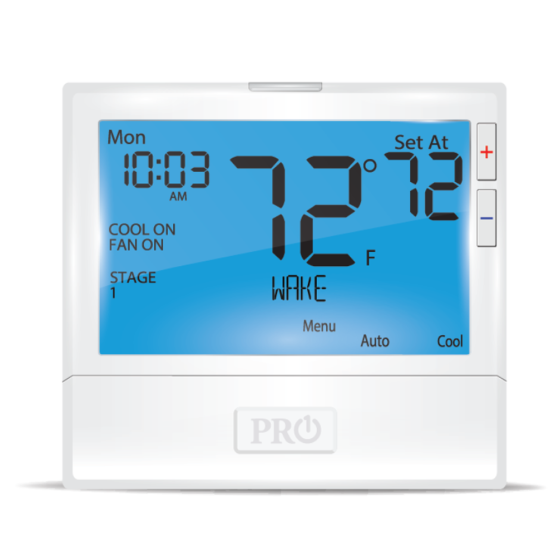

• 8 sq. inch display • Blue backlight • Glow in the dark light button • Easy access battery compartment • Keypad lockout • Adjustable setpoint limits • Simple private label badge system • Easy access battery compartment • 5 Year Warranty • Separate heating and cooling swing (cycle rate) adjustments • 5 minute compressor delay protection (selectable on or off ) • Universal subbase • Battery or 24v power • Programmable Fan
SPECIFICATIONS
• Application: Up to 2 Heat, 2 Cool Conventional - Up to 3 Heat, 2 Cool Heat Pump • Programmability: 7 Day, 5/1/1 or Non-Programmable • Changeover: Auto • Display Range: 41˚F to 95˚F (5˚C to 35˚C) • Control Range: 44˚F to 90˚F (7˚C to 32˚C) • Display Accuracy: +/- 1˚F • Heat Swing: Adjustable from 0.2˚F to 2.0˚F • Cool Swing: Adjustable from 0.2˚F to 2.0˚F • Terminals: Rc, Rh, G, Y, Y2, C, O, B, W/E, W2 • Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined • Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries • Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C) • Operating Humidity: 90% non-condensing maximum • Mounting: Wall or Junction Box • Dimensions: 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D) • Warranty: 5 year warranty
