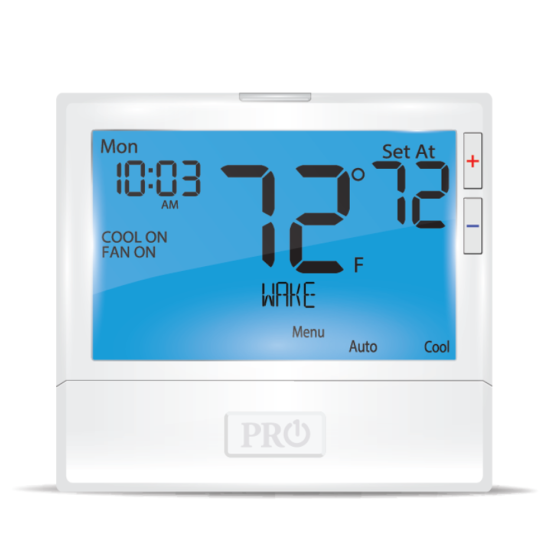

Pro1 T805 7/5+1+1 Day Programmable Thermostat 1H/1C, 24Vac/3Vdc (2AA)

Item
T805
  • California Prop 65

FEATURES

• 8 sq. inch display
• Blue backlight
• Glow in the dark light button
• Easy access battery compartment
• Keypad lockout
• Adjustable setpoint limits
• Simple private label badge system
• Easy access battery compartment
• 5 Year Warranty
• Separate heating and cooling swing (cycle rate) adjustments
• 5 minute compressor delay protection (selectable on or off )
• Universal subbase
• Battery or 24v power
• Programmable Fan

SPECIFICATIONS

• Application: 1 heat, 1 cool
• Programmability: 7 Day, 5/1/1 or Non-Programmable
• Changeover: System Switch
• Display Range: 41˚F to 95˚F (5˚C to 35˚C)
• Control Range: 44˚F to 90˚F (7˚C to 32˚C)
• Display Accuracy: +/- 1˚F
• Heat Swing: Adjustable from 0.2˚F to 2.0˚F
• Cool Swing: Adjustable from 0.2˚F to 2.0˚F
• Terminals: Rc, Rh, G, Y, C, O, B, W
• Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
• Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
• Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C)
• Operating Humidity: 90% non-condensing maximum
• Mounting: Wall or Junction Box
• Dimensions: 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D)
• Warranty: 5 year warranty

Specification
Power Method Hardwire (24Vac)/Battery (3Vdc)
Program Options (Days) 7, 5+1+1
Display Size 8 sq. in.
Temporary Hold Yes
Permanent Hold Yes
Millivolt Compatible Yes
Battery Backup Yes
Remote Sensing Capability No
Batteries Included No
System Switching Yes
Programmable Yes
Temporary Override Yes
Display Yes
Dehumidification Controls No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 1.100000
Exterior Dimensions (W) (inches) 4.700000
Exterior Dimensions (H) (inches) 4.400000
Shipping Weight (lbs) 1.000000
