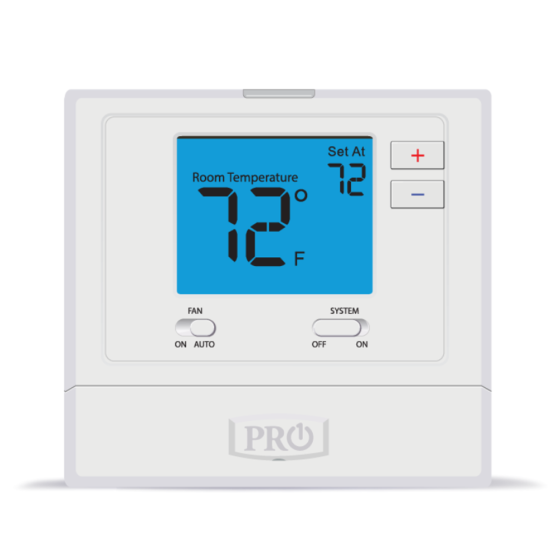

• 4 sq. inch display • Blue backlight • Glow in the dark light button • Easy access battery compartment • Universal subbase • Simple private label badge system • Setpoint range from 25°F to 99°F (low set point is great for garage applications) • Set point limits (meets building codes for garage applications) • Mounts on wall or junction box • 5 Year Warranty • Customizable staging logic • Heating and cooling swing (cycle rate) adjustments • Battery or 24V power • Room temperature calibration adjustments • Easy wire color coded terminal blocks
SPECIFICATIONS
• Application: 1 Heat Only or 2 Cool Only • Programmability: Non-Programmable • System Switch: Cool - Off - Heat - Auto • Display Range: 20˚F to 99˚F (-7˚C to 37˚C) • Control Range: 25˚F to 99˚F (-4˚C to 37˚C) • Display Accuracy: +/- 1˚F • Heat Swing: Adjustable from 0.2˚F to 2.0˚F • Cool Swing: Adjustable from 0.2˚F to 2.0˚F • Terminals: Rc, Rh, C, G, Y/W • Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined • Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries • Operating Ambient: 20˚F to +105˚F (-7˚C to +41˚C) • Operating Humidity: 90% non-condensing maximum • Mounting: Wall or Junction Box • Dimensions: 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D) • Warranty: 5 year warranty
