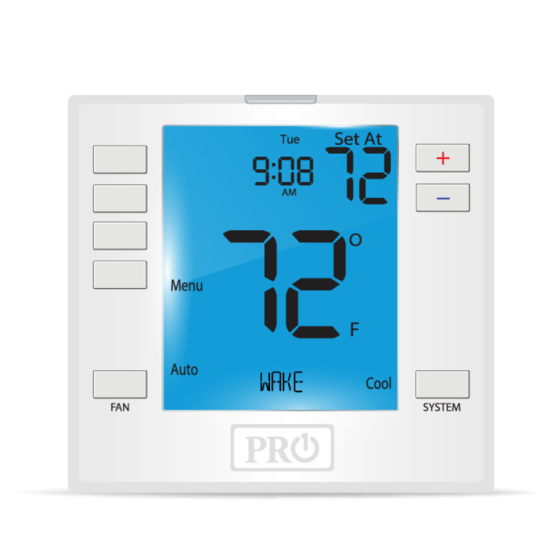

Pro1 T755 7/5+1+1 Day Programmable Thermostat 2H/2C (3H/2C HP), 24Vac/3Vdc (2 AA)

Item
T755
  • California Prop 65

FEATURES

• 7 sq. inch display
• Blue backlight
• Glow in the dark light button
• Easy access battery compartment
• Universal subbase
• Simple private label badge system
• Setpoint limits
• Electric or gas configurable
• Mounts on wall or junction box
• Auto-changeover
• PTAC capable
• 5 Year Warranty
• 5 minute compressor delay protection (selectable on or off )
• Customizable staging logic
• Separate heating and cooling swing (cycle rate) adjustments
• Battery or 24V power
• Room temperature calibration adjustments
• Easy wire color coded terminal blocks
• Three speed fan

SPECIFICATIONS

• Application: Up to 2 Heat 2 Cool Conventional, 3 Heat 2 Cool Heat Pump
• Programmability: 7 Day, 5/1/1 or Non-Programmable
• System Switch: Cool - Off - Heat- Auto
• Display Range: 41˚F to 95˚F (5˚C to 35˚C)
• Control Range: 44˚F to 90˚F (7˚C to 32˚C)
• Display Accuracy: +/- 1˚F
• Heat Swing: Adjustable from 0.2˚F to 2.0˚F
• Cool Swing: Adjustable from 0.2˚F to 2.0˚F
• Terminals: Rc, Rh, G, Y, Y2, C, O, B, W/E, W2
• Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
• Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
• Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C)
• Operating Humidity: 90% non-condensing maximum
• Mounting: Wall or Junction Box
• Dimensions: 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D)
• Warranty: 5 year warranty

Specification
Backlight Yes
Display Size 7 sq. in.
Millivolt Compatible Yes
Permanent Hold Yes
Program Options (Days) 7, 5+1+1
Stages (Conventional) 2 Heat, 2 Cool
Stages (Heat Pump) 3 Heat, 2 Cool
Touchscreen No
WiFi Capability No
Temporary Hold Yes
Remote Sensing Capability No
Power Method Hardwire (24Vac)/Battery (3Vdc)
Key Pad Lockout No
Humidification Controls No
Filter Indicator Yes
Battery Backup Yes
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.75
Exterior Dimensions (D) (inches) 1.100000
Exterior Dimensions (W) (inches) 5.700000
Exterior Dimensions (H) (inches) 4.400000
Shipping Weight (lbs) 2.500000
