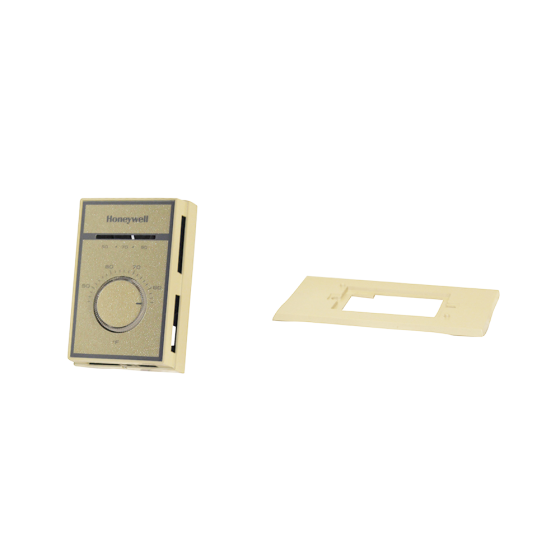

• Automatic cooling and heating anticipation. • Mount on standard vertical or horizontal outlet box. • Hazmat Information UN 2037, RECEPTACLES, SMALL, CONTAINING GAS, 2.1 • Application: Heating and cooling • Dimensions (in.): 4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.) • Dimensions (mm) 115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm) • Includes Vertical scaleplate with thermometer, horizontal scaleplate with no thermometer, range stops and locking screws, wall plate, and high accuracy Dual Diaphragm sensor • Electrical Ratings: 9.8 FLA / 58.8 LRA @ 120 Vac; 5.6 FLA / 33.6 LRA @ 208 Vac; 4.9 FLA / 29.4 LRA @240 Vac; 4.2 FLA / 25.2 LRA @277 Vac; 22 A @ 120 240 Vac Resistive; 19 A @ 277 Vac Resistive. • Frequency 50 Hz; 60 Hz • Approvals, Underwriters Laboratories Inc. Listed: File No. E4436, Guide No. XAPX, Guide No. XAPX. • Approvals, CSA CSA Certified, File No. LR1322 • Electrical Connections: Flylead • Supply Voltage: 120 to 227 Vac • Switch Positions (System): Heating and cooling • Sensor Element: Vapor filled dual diaphragm • Differential Temperature (F): 2°F • Color: Champagne gold faceplate with beige cover • Switching Action: SPDT breaks heating and makes cooling on temperature rise • Setting Temperature Range (F): 44°F to 86°F
