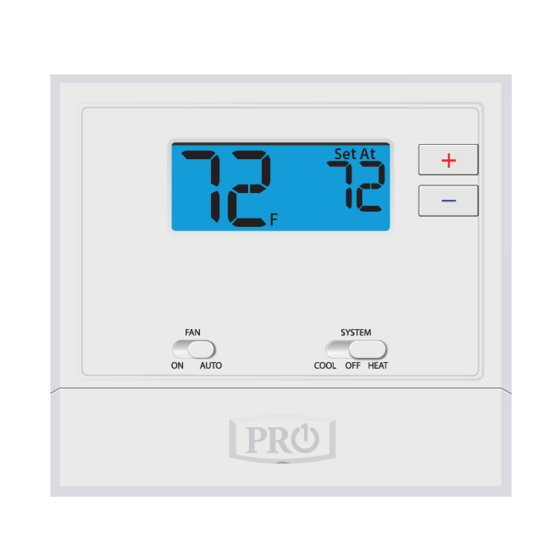

Pro1 T601-2 Non-Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA - Builders)

Item
T601-2
  • California Prop 65

FEATURES

• 2 sq. inch display
• Blue backlight
• Glow in the dark light button
• Easy access battery compartment
• Setpoint limits
• Simple private label badge system
• 2 Year Warranty
• Separate heating and cooling swing (cycle rate) adjustments
• Large Temperature and setpoint display
• Universal subbase
• Battery or 24v power

SPECIFICATIONS

• Application: 1 Heat, 1 Cool
• Programmability: Non-Programmable
• Changeover: System Switch
• Display Range: 41˚F to 95˚F (5˚C to 35˚C)
• Control Range: 44˚F to 90˚F (7˚C to 32˚C)
• Display Accuracy: +/- 1˚F
• Heat Swing: Adjustable from 0.2˚F to 2.0˚F
• Cool Swing: Adjustable from 0.2˚F to 2.0˚F
• Terminals: Rc, Rh, C, Y, W, G, O, B
• Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
• Power Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries
• Operating Ambient: 32˚F to +105˚F (0˚C to +41˚C)
• Operating Humidity: 90% non-condensing maximum
• Mounting: Wall or Junction Box
• Dimensions: 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D)
• Warranty: 2 year warranty

Specification
Backlight Yes
Display Size 2 sq. in.
Millivolt Compatible Yes
Permanent Hold No
Stages (Conventional) 1 Heat, 1 Cool
Stages (Heat Pump) 1 Heat, 1 Cool
Touchscreen No
WiFi Capability No
Temporary Hold No
Remote Sensing Capability No
Power Method Hardwire (24Vac)/Battery (3Vdc)
Key Pad Lockout No
Humidification Controls No
Filter Indicator No
Battery Backup Yes
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 1.100000
Exterior Dimensions (W) (inches) 4.700000
Exterior Dimensions (H) (inches) 4.400000
Shipping Weight (lbs) 5.000000
