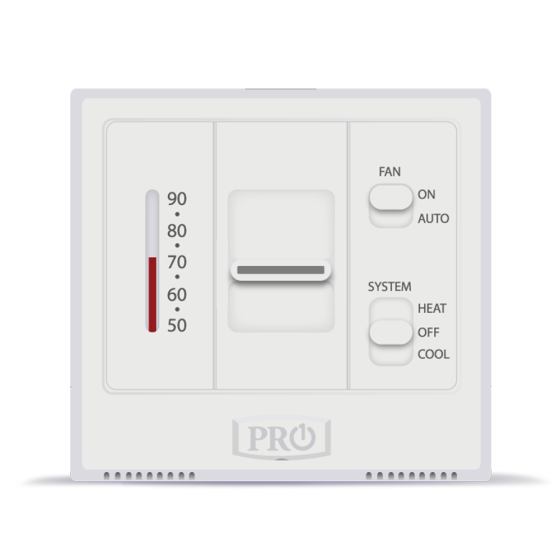

PRO1® Mechanical Thermostat 1H/1C, 24Vac
Item
T501M
FEATURES & BENEFITS
• The display range of temperature: 50˚F to 90˚F (10˚C to 32˚C)
• The control temperature range: 50˚F to 90˚F (10˚C to 32˚C)
• Load rating: 1 amp per terminal, 1.5 amp maximum all terminals combined
• Display accuracy: ± 1 °F
• Swing (cycle rate or differential) : Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F
• Power source: 18 to 30 VAC
• Operating ambient: 32° to +105° (O° to + 41°C)
• Operating humidity: 90% non-condensing maximum
• Dimensions of thermostat: 4.7"W x 4.4"H x 1.3"D
• Simple private label badge system
Three thermostats in one
Heat - Off – Cool
Heat only with fan
Heat only without fan
• Removable fan switch
• Universal sub-base
• Mounts on wall or junction box
• Mechanical 24V power
• 2 year warranty
| Specification | |
|---|---|
| Power Method | Hardwire (24Vac) | Stages (Conventional) | 1 Heat, 1 Cool | Stages (Heat Pump) | 1 Heat, 1 Cool | Millivolt Compatible | Yes | Programmable | No |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 1.100000 | Exterior Dimensions (W) (inches) | 4.700000 | Exterior Dimensions (H) (inches) | 4.400000 | Shipping Weight (lbs) | 5.000000 |
