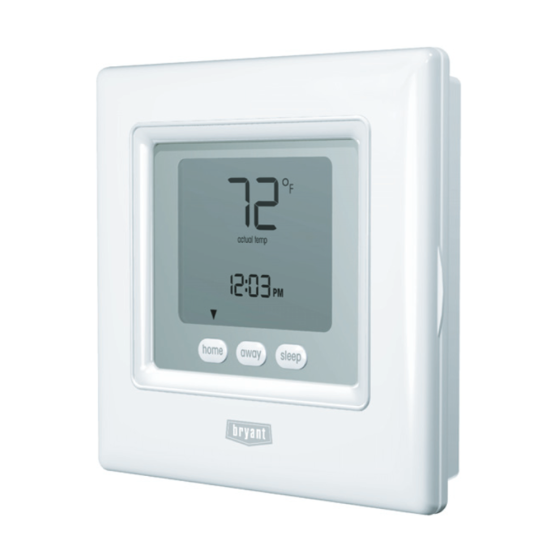

Bryant® Legacy™ 7/5+2 Day Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA - Conventional)
Item
T2PAC01A
FEATURES & BENEFITS
• Continuous display back-lighting configurable
• Auto changeover available
• Non-volatile memory to retain settings during a power outage
• Optional battery operation
• English/Metric units selection
• Keypad lockout
• RC / RH power compatible
• Configurable setpoint limits
• Touch-n-Go™ programmability
• 5-2 or All Days programmable
• 4 or 2 periods per day selectable
• 1-stage heat / 1-stage cool
• Terminals: W, Y, G, Rh, Rc, C
| Specification | |
|---|---|
| Backlight | Yes | Permanent Hold | Yes | Program Options (Days) | 7, 5+2 | Stages (Conventional) | 1 Heat, 1 Cool | Touchscreen | No | WiFi Capability | No | Temporary Hold | Yes | Remote Sensing Capability | No | Power Method | Hardwire (24Vac)/Battery (3Vdc) | Key Pad Lockout | Yes | Humidification Controls | No | Filter Indicator | No | Battery Backup | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.45 | Exterior Dimensions (D) (inches) | 5.200000 | Exterior Dimensions (W) (inches) | 5.300000 | Exterior Dimensions (H) (inches) | 1.600000 | Shipping Weight (lbs) | 1.500000 |
