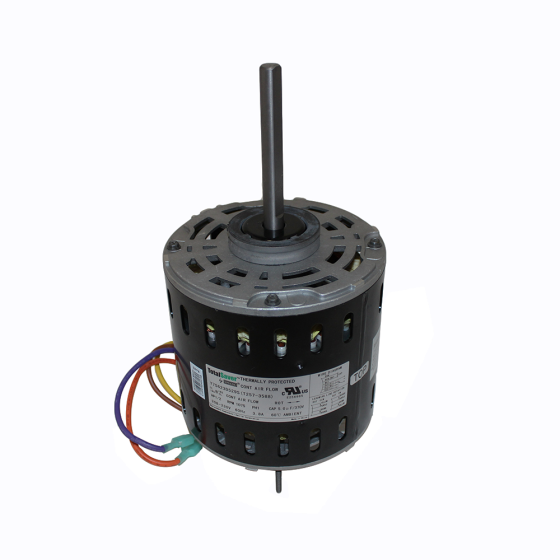

Totaline® TotalSaver® Direct Drive Blower Motor 1/2HP, 1075RPM, 208/230Vac, 3.8A, 5µF/370Vac, 3 Speed, 60° C, (PSC)
PRODUCT DETAILS
• Suitable for vertical shaft up or horizontal mounting
• 26” leads
• Automatic reset protection
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 3
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 3.8
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 4.5
Specification |
Bearing Type |
Sleeve |
Motor Frame |
48 |
Motor HP |
1/2 |
Motor Type |
PSC |
Mounting Type |
BOLT |
Number of Speeds |
3 |
RPM |
1075 |
Shaft Diameter |
0.50 |
Shaft Length |
4.5 |
Electrical |
Amps |
3.8 |
FLA |
3.8 |
Hertz |
60 |
Voltage |
208/230 |
Safety Standards |
California Prop 65 |
Yes |
Weights and Dimensions |
Operating Weight (lbs) |
14.8 |
Exterior Dimensions (D) (inches) |
7.400000 |
Exterior Dimensions (W) (inches) |
24.300000 |
Exterior Dimensions (H) (inches) |
7.900000 |
Shipping Weight (lbs) |
14.800000 |
Warranty |
Parts Warranty |
1 Year |
