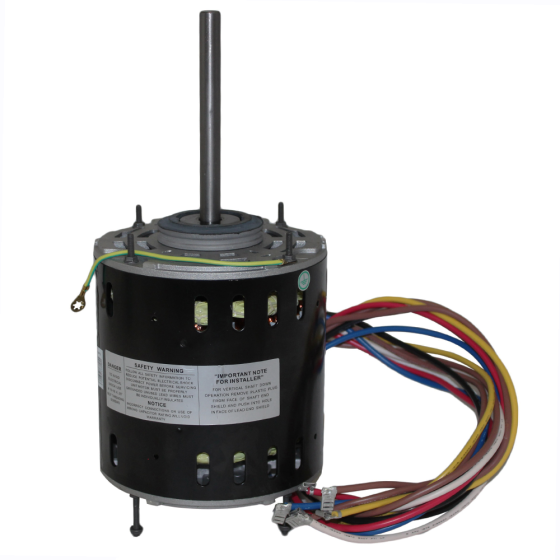

Totaline® TotalSaver® Multi-HP Direct-Drive Blower Motor 1/5-3/4HP, 1100RPM, 208/230Vac, 4.6A, 10/20µF/370Vac, 4 Speed, 60 °C, (PSC)
Item
T257-3467
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Ambient Temperature | 60 °C | Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/5 - 3/4 | Motor Type | PSC | Mounting Type | RING | Number of Speeds | 4 | RPM | 1100 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 4.6 | FLA | 4.6 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15.5 | Exterior Dimensions (D) (inches) | 7.300000 | Exterior Dimensions (W) (inches) | 25.350000 | Exterior Dimensions (H) (inches) | 7.600000 | Shipping Weight (lbs) | 15.500000 |
| Warranty | |
|---|---|
| Parts Warranty | 1 Year |
