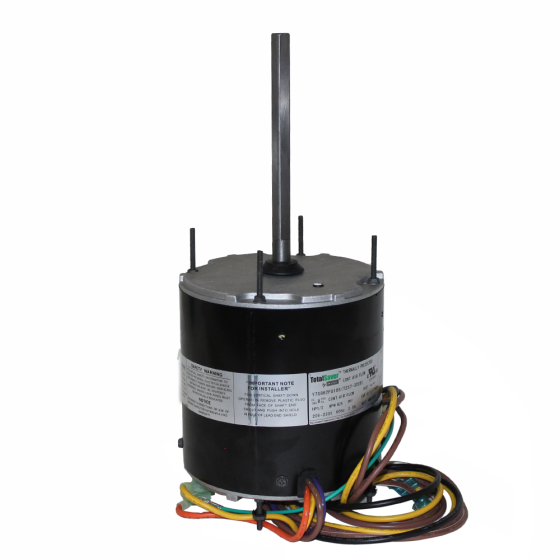

Totaline® TotalSaver® Condenser Fan Motor 1/2HP, 825RPM, 208/230Vac, 2.8A, 7.5µF/440Vac, 1 Speed, 60° C, (PSC)
Item
T257-3206
PRODUCT DETAILS
• Suitable for vertical shaft up or horizontal mounting
• 26” leads
• Automatic reset protection
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 825
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 2.8
• Capacitor: 7.5µF/440Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 6.0
| Specification | |
|---|---|
| Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 1 | RPM | 825 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 2.8 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15.3 | Exterior Dimensions (D) (inches) | 7.200000 | Exterior Dimensions (W) (inches) | 18.100000 | Exterior Dimensions (H) (inches) | 6.900000 | Shipping Weight (lbs) | 15.300000 |
