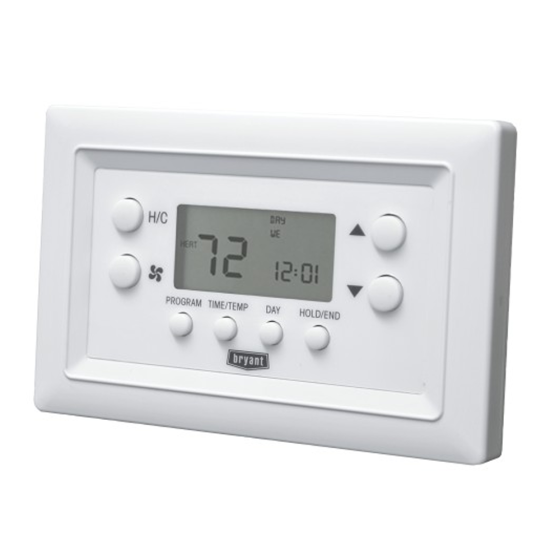

Bryant® Legacy™ 5+2 Day Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA - Conventional)
Item
T1PAC01A
FEATURES & BENEFITS
• Non-volatile memory to retain settings during a power outage
• English/Metric units selection
• Modes include Off, Cool, Heat
• 5-2 days programmable
• Operation with batteries optional
• 1-stage heat / 1-stage cool
• Terminals W, Y, G, R, C
| Specification | |
|---|---|
| Stages (Conventional) | 1 Heat, 1 Cool | Power Method | Hardwire (24Vac)/Battery (3Vdc) | Program Options (Days) | 5+2 | WiFi Capability | No | Temporary Hold | Yes | Permanent Hold | Yes | Touchscreen | No | Battery Backup | Yes | Filter Indicator | No | Humidification Controls | No | Key Pad Lockout | No | Remote Sensing Capability | No | Backlight | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.2 | Exterior Dimensions (D) (inches) | 5.400000 | Exterior Dimensions (W) (inches) | 3.500000 | Exterior Dimensions (H) (inches) | 0.400000 | Shipping Weight (lbs) | 1.000000 |
