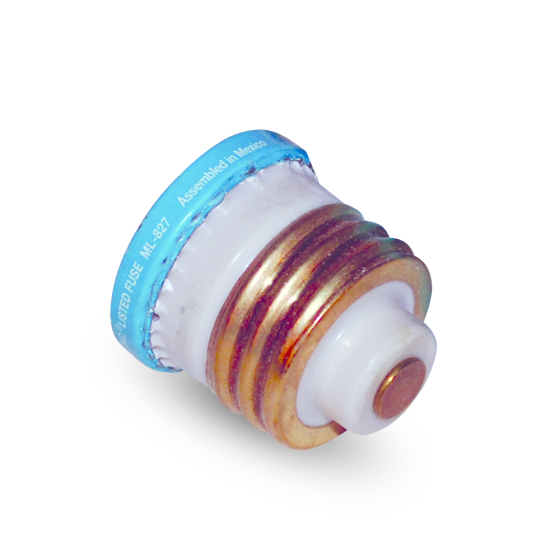

Time-Delay 'TL' Fuse 15a, 125Vac

Item

T-15

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Close sizing to motor load for better protection
• Time-Delay with a load link
• Edison base
• Diameter (in.): 1.126
• Type: Time-Delay
• Series: TL
• Voltage: 125VAC
• Fuse Amps: 15
• Length (in.): 1.29
• Indicating: Visual Window
• Element: Dual
• Body Material: Glass
• Body Style: Plug
• Standards: UL/CSA
• Interrupt Rating: 10kA IR AC

Specifications

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	15

Weights and Dimensions
Operating Weight (lbs)	0.5
Exterior Dimensions (D) (inches)	1.250000
Exterior Dimensions (W) (inches)	1.160000
Exterior Dimensions (H) (inches)	1.160000
Shipping Weight (lbs)	2.000000
