Remote Control, Signaling, and Power-Limited circuits per NEC Article 725 22AWG through 16 AWG also communication circuits per NEC Article 800. Security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. Where routed in plenum spaces.
FEATURES & BENEFITS

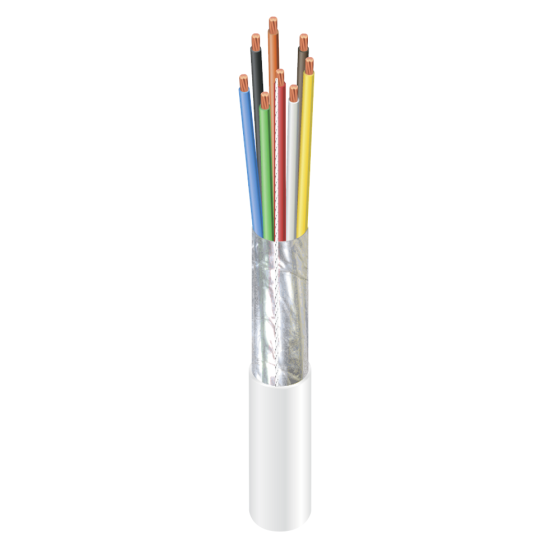

• INSULATION: LS-PVC • SHIELDING: Overall - Aluminum foil, polyester reinforced tape and stranded tinned copper drain wire. • ASSEMBLY: Cabled, with ripcord, and jacketed. • JACKET: LS-PVC • FLAME TEST: NFPA 262 (Formerly UL 910 Steiner Tunnel) • CABLE TYPE: CL3P. Also CMP where UL permits (Sizes 16 AWG and smaller.) • VOLTAGE: 300V • TEMPERATURE: 75C • General purpose low voltage and power-limited systems' circuits to NEC Article 725 16 AWG and smaller also for communications circuits to NEC Article 800. • UL listed to UL 444 and UL 13 as applicable
