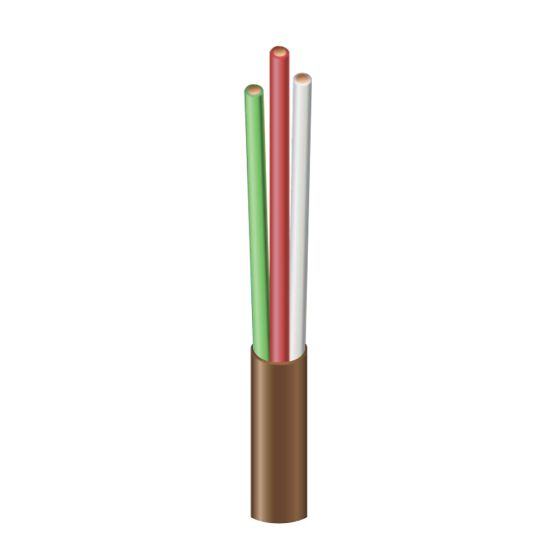

Southwire Solid-Unshielded Thermostat Wire 150Vac, 18 AWG, 3-Conductors, CL2, 500' (Brown)

Item
SW1803
  • California Prop 65

FEATURES & BENEFITS

• Thermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications
• Solid copper conductors with 6 mils of HDPE insulation
• Conductors are covered with a FR PVC jacket, Brown
• Ripcord
• 150 Voltage rating per NEC® Article 725
• ETL listed to UL 13 and UL 444
• Meets UL 1581 Vertical Tray Flame Test (FT-1)
• Type CL2
• C22.2 214 TYPE CMH

Safety Standards
California Prop 65 Yes
Specification
Wire Gauge 18
Weights and Dimensions
Operating Weight (lbs) 10
Exterior Dimensions (D) (inches) 9.500000
Exterior Dimensions (W) (inches) 9.500000
Exterior Dimensions (H) (inches) 0.270000
Shipping Weight (lbs) 10.000000
General
Color Brown
