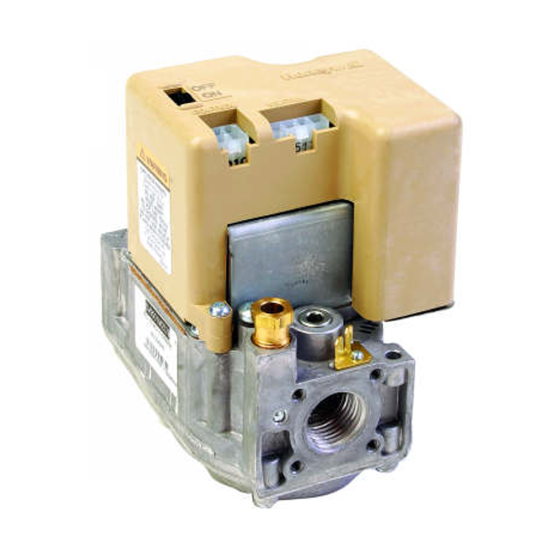

Honeywell® SmartValve® Intermittent Pilot Gas Valve 1/2" x 1/2" - 24Vac - 200cfh
Item
SV9501M2528
PRODUCT DETAILS
The SmartValve® System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve System is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 Intermittent Pilot burners used with the original controls on the appliance.
Suitable for a wide range of gas-fired appliances including residential furnaces, roof-top furnaces, residential boilers, unit heaters, infrared heaters, space heaters and commercial cooking units.
FEATURES & BENEFITS
• Ignition sequence includes timed trial for ignition.• Mounts 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
• Approval: CSA International: 112395
• Type of Gas: Natural (LP with included conversion kit)
• Flame Sense: HSI
• Ignition Source: Pilot
• Ignition Trials To Lockout: Continuous Retry
• Body Pattern: Straight-through
• Electrical Ratings: 24 Vac 50/60hz
• Flame Failure Response Time (sec): 1.6 sec @ 3 µA
• Ambient Temperature Range: -40 F to +175 F (-40°C to 79°C)
• Ignition Trial Time (sec): 90 sec
• Pressure Regulator Setting (psi): 3.5 in. wc
• Pressure Regulator Setting (kPa): 0.87 kPa
• Pressure Ratings (psi): 1/2 psi
• Pressure Ratings (kPa): 3.5 kPa
• Inlet/Outlet Size (in.): 1/2 in. NPT x 1/2 in. NPT
• Pilot Gas Outlet: Yes
• Pressure Tapping: 1/8 in. - NPT
• Capacity (ft³/hr): Maximum at 1 in. P.D.--150 ft³/hr; Maximum--200 ft³/hr; Minimum--20 ft³/hr
• Capacity (m³/hr): Maximum at 1 in. P.D.--4.2 m³/hr; Maximum--5.7 m³/hr; Minimum--0.6 m³/hr
INCLUDES
• Natural to LP Conversion Kit• Extension harness
Specification | |
---|---|
Gas Connection Size | 1/2" x 1/2" |
Electrical | |
---|---|
Voltage | 24 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2.05 | Exterior Dimensions (D) (inches) | 6.200000 | Exterior Dimensions (W) (inches) | 5.100000 | Exterior Dimensions (H) (inches) | 3.400000 | Shipping Weight (lbs) | 5.000000 |
Warranty | |
---|---|
Country of Origin | Mexico |
