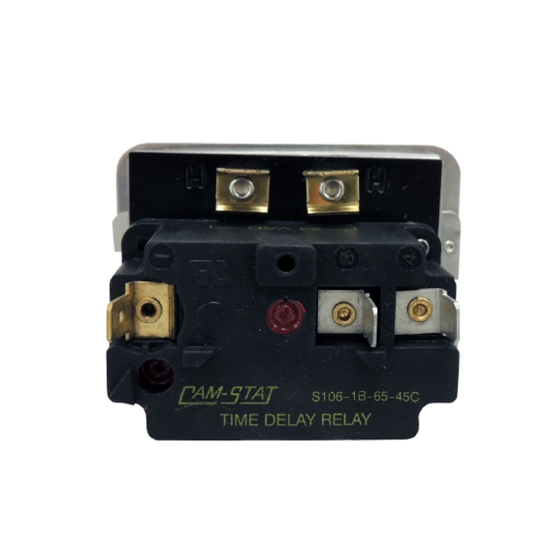

Time Delay Relay SPDT, 24Vac
Item
S106-1B-65-45C
APPLICATIONS
For replacing the exact OEM heating control components, Supco® offers the complete line of CAMSTAT® controls.
FEATURES & BENEFITS
• SPDT
• Controls high current blowers, relays and contactors
• Delay ON/OFF timing
• Input: 0.12 A at 24 VAC
• UL® Recognized
• Terminal: 1 & 4: N.C. 240V, 2.9 FLA/17.4 LRA
• Voltage: 24 VAC Control
• Terminal: 1 & 4: N.C. 120V, 5.8 FLA/ 34.8 LRA
• Terminal: 2 & 4: N.O. 240V, 8.0 FLA/48 LRA
• Terminal: 2 & 4: N.O. 120V, 13.8 FLA/82.8 LRA
• Time: Delay off: 45 to 75 seconds
• Time: Delay on: 60 to 70 seconds
• Switch: SPDT
CROSS REFERENCE
• A-1® - FF586
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 1.000000 |
