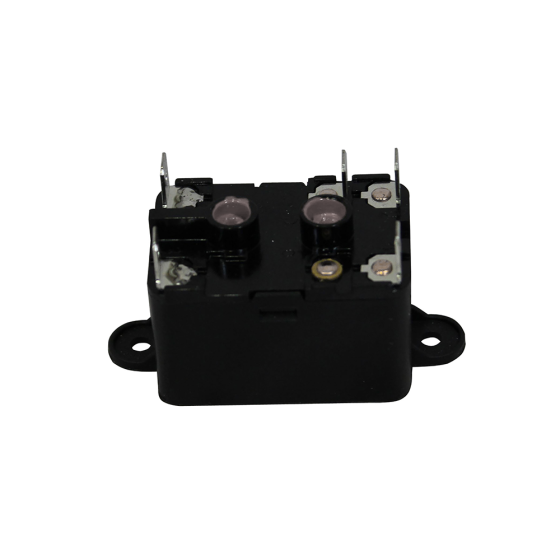

Totaline® Relay SPDT, 24V, 8A

Item
P283-0293
  • California Prop 65

FEATURES

• Dependable, low cost solution for air conditioning and heating switching.
• Insulating Material -Constructed of UL recognized Class B insulating material
• Temperature Range --40° to 150° Fahrenheit
• Single Pole Fan Relays- Similar To Type 84 Fan Relays
• Fan control
• Appliances
• Business Machines
• Photoelectric control and general purpose switching

APPLICATIONS

Fan control, appliances, business machines, photoelectric control and general purpose switching.

FEATURES & BENEFITS

• Dependable, low cost solution for air conditioning and heating switching.
• Insulating Material: Constructed of UL recognized Class B insulating material
• Temperature Range: -40° to 150° Fahrenheit
• SPDT
• 24V Coil
• Contact Rating 125/250Vac: 8A (IND), 8A (RES)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.15
Exterior Dimensions (D) (inches) 2.500000
Exterior Dimensions (W) (inches) 1.300000
Exterior Dimensions (H) (inches) 1.100000
Shipping Weight (lbs) 1.000000
Warranty
Country of Origin China
