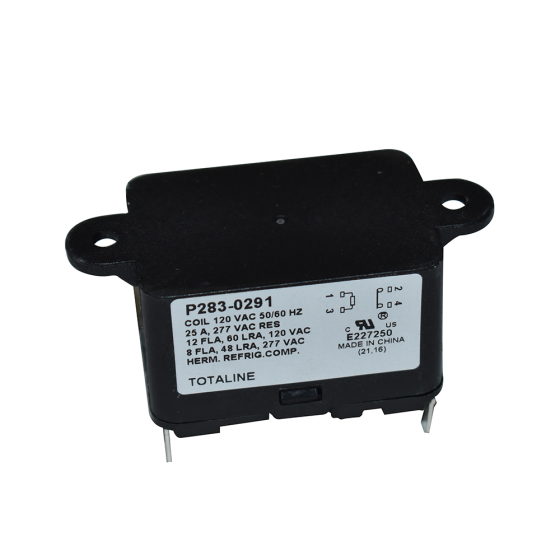

Totaline® Relay SPST, 110/120V, Continuous
Item
P283-0291
FEATURES
• Dependable, low cost solution for air conditioning and heating switching.• Insulating Material -Constructed of UL recognized Class B insulating material
• Temperature Range --40° to 150° Fahrenheit
• Single Pole Fan Relays- Similar To Type 84 Fan Relays
• Fan control
• Appliances
• Business Machines
• Photoelectric control and general purpose switching
APPLICATIONS
Fan control, appliances, business machines, photoelectric control and general purpose switching.
FEATURES & BENEFITS
• Dependable, low cost solution for air conditioning and heating switching.
• Insulating Material: Constructed of UL recognized Class B insulating material
• Temperature Range: -40° to 150° Fahrenheit
• SPST
• 110/120V Coil
• Contact Rating 125/250Vac: Continuous
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 1.900000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 0.500000 | Shipping Weight (lbs) | 1.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
