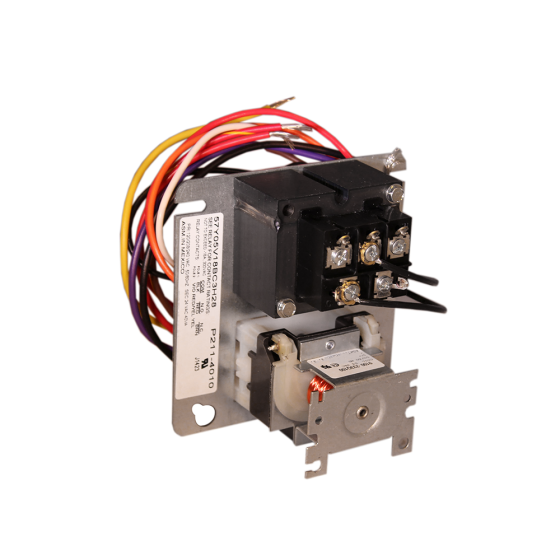

Totaline® Fan Relay, DPDT,120/208/240Vac Primary, 24V Secondary
Item
P211-4010
FEATURES & BENEFITS
• 40 VA transformer
• 24 volt secondary
• Fits standard 4” Junction box.
• Self-contained unit requires no additional closure.
• Unit imprinted with wiring diagram
• Resistive contact rating: 15a @ 277v
• Relay coil volts: 24
• Inductive contact rating: 3/4 h.p., 12a @ 120v; 3/4 h.p., 6a @ 240v
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4.45 | Exterior Dimensions (D) (inches) | 4.450000 | Exterior Dimensions (W) (inches) | 2.200000 | Exterior Dimensions (H) (inches) | 4.450000 | Shipping Weight (lbs) | 4.450000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
