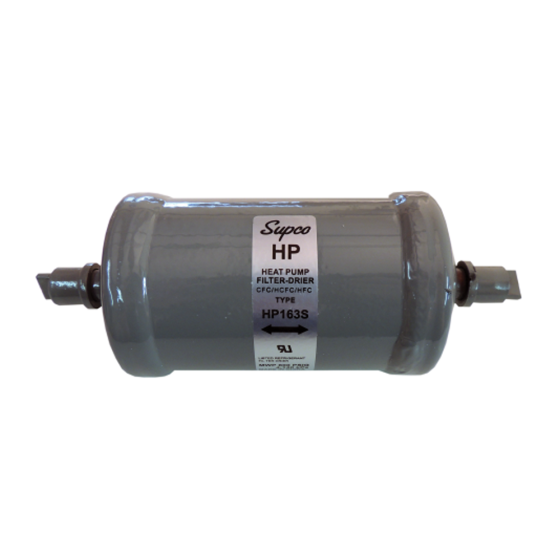

Supco® Liquid Line Bi-Flow Filter Drier, 3/8" ODF, 16 cu. in.

Item

HP163S

FEATURES

• 16 cubic inch drier in a 2 ½" diameter shell

• Compatible with all refrigerants (including R290)

• Copeland® approved for POE oils

• Corrosion resistant epoxy powder paint finish

• High moisture and acid removal

• Internal check valves allow flow and filtration in either direction

• Desiccant Blend: 75% molecular sieve and 25% activated alumina

• Filtration: 40 microns

• Maximum working pressure: 600 PSIG

• Connection Size: ⅜"

• Connection Type: ODF

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	3
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	3.000000
