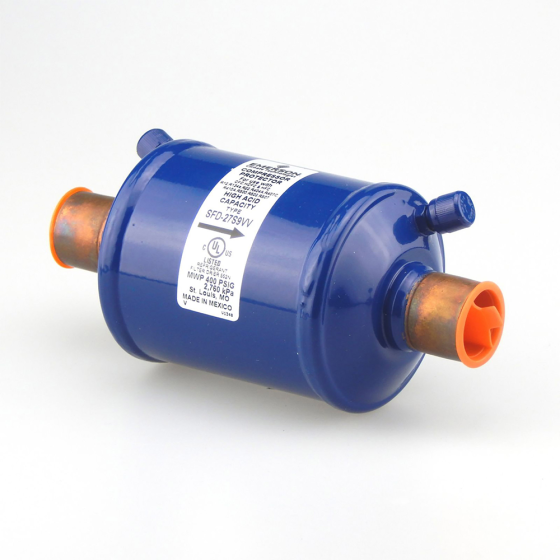

Emerson Suction Line Filter Drier 1-1/8" ODF 27cu. in. (For Burnouts)
Item
SFD27S9VV
APPLICATIONS
• The SFD is a standard suction line filter drier for use after a burnout or when major work has been performed.• It is for use with CFC, HCFC and HFC refrigerants.
FEATURES & BENEFITS
• Solid copper connections• Dual access valves for easy pressure readings
• Corrosion resistant epoxy powder paint finish
• R-410A compatible
• Filtration: 40 microns
• Maximum working pressure: 500 psig
• UL/CUL file number: SA 3124
• Desiccant Volume: 27cu. in.
• Connection Inlet Size: 1-1/8" ODF
• Connection Outlet Size: 1-1/8" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 3.000000 |
