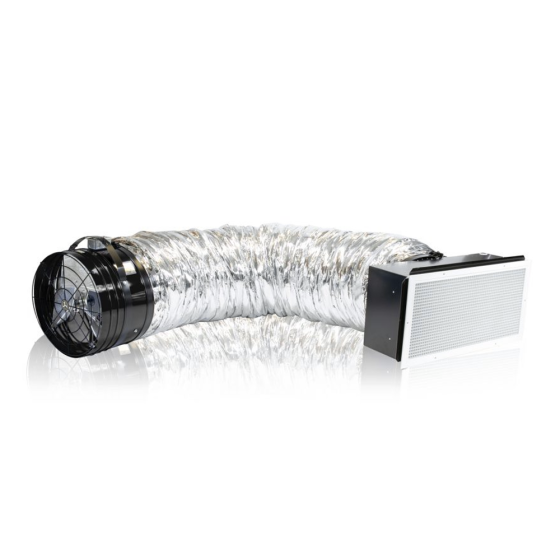

QuietCool® Stealth Pro 4.8X Whole House Fan 2,361 to 4,280CFM, 120Vac (1,427 to 2,140sq ft)
APPLICATIONS
Our Stealth Pro X Series is the efficient Whole House Fan that mastered low cost cooling with powerful results. With our sleek design, patented technology, and reliable production, you can utilize an ultra-energy efficient motor to keep your home cool and your money saved.
FEATURES & BENEFITS
• Airflow: Hi: 4,280 CFM / Med: 3,500 CFM / Low: 2,361 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): Hi: 3,130 CFM / Med: 2,560 CFM / Low: 1,670 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 1,427 SQFT to 2,140 SQFT
• Energy Use: Hi: 408 Watts / Med: 225 Watts / Low: 73.9 Watts
• Amps: Hi: 5.16 / Med: 3.00 / Low: 1.07
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 3
• dBA: Hi: 47.4 / Med: 41.6 / Low: 33.0
• Minimum Attic Clearance: 36”
• Duct Diameter: 18”
• Duct Length: 9 feet
• Motor Head Diameter: 18 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls (Sold Separately): Included: 8 Hr Electronic Timer & Double 3-way switch (Optional: IT-36002 QuietCool RF Wireless Control Kit)
• Warranty: 15 Years
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 5.71 SQ FT net free area
• Ceiling Rough Opening: 14 1/4” x 30 1/4”
• Removable Grille Outside Dimension: 16” x 32”
INCLUDES
• QC STL PRO4.8X Motorhead
• Ceiling Grille
• Cutout Template
• Window Locks
• Damper Box
• 9 Foot Duct
• Accessory Bag
• Control
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 75 | Exterior Dimensions (D) (inches) | 36.000000 | Exterior Dimensions (W) (inches) | 40.000000 | Exterior Dimensions (H) (inches) | 22.000000 | Shipping Weight (lbs) | 75.000000 |
Specification | |
---|---|
CFM | 4,280 |
