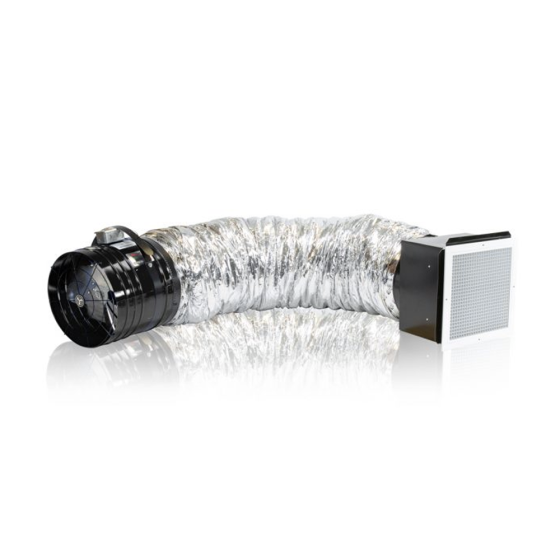

QuietCool® Stealth Pro 1.5X Whole House Fan 1,479CFM, 120Vac (439 to 739sq ft)
APPLICATIONS
Our Stealth Pro X Series is the efficient Whole House Fan that mastered low cost cooling with powerful results. With our sleek design, patented technology, and reliable production, you can utilize an ultra-energy efficient motor to keep your home cool and your money saved.
FEATURES & BENEFITS
• Airflow: 1,479 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): 1,040 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 439 SQFT to 739 SQFT
• Energy Use: 66.7 Watts
• Amps: 0.9
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 1
• dBA: 37.2
• Minimum Attic Clearance: 32”
• Duct Diameter: 14”
• Duct Length: 6 feet
• Motor Head Diameter: 14 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls (Sold Separately): Included: 8 Hr Electronic Timer (Optional: IT-36002 QuietCool RF Wireless Control Kit)
• Warranty: 15 Years
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 1.98 SQ FT net free area
• Ceiling Rough Opening: 14 1/4” x 14 1/4”
• Removable Grille Outside Dimension: 16” x 16”
INCLUDES
• QC STL PRO1.5X Motorhead
• Ceiling Grille
• Cutout Template
• Window Locks
• Damper Box
• 6 Foot Duct
• Accessory Bag
• Control
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 45 | Exterior Dimensions (D) (inches) | 20.000000 | Exterior Dimensions (W) (inches) | 38.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 45.000000 |
Specification | |
---|---|
CFM | 1,479 |
