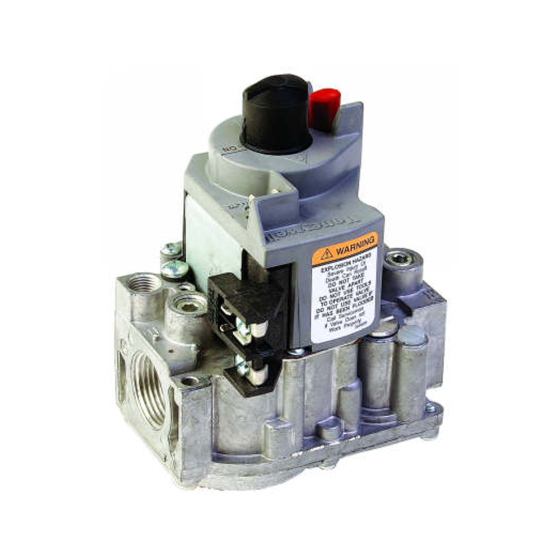

Honeywell® Standing Pilot Gas Valve 1/2" x 3/4" - 24Vac - 300cfh

PRODUCT DETAILS

Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

FEATURES & BENEFITS

• Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
• Compact size.
• Provides two automatic valves.
• Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
• Meets codes requiring dual safety shut-off.
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
• All adjustments, wiring connections and pilot outlet are accessible from top of control.
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
• Compatible with ECO connector.
• LITE-RITE (OFF-PILOT-ON) lighting sequence.
• Application: Single Stage
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
• Approvals: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association 4717
• Electrical Connections: 1/4 in. quick-connect male terminals
• Voltage: 24 Vac 60hz
• Operating Temperature Range: 0°F to 175°F (-18°C to 79°C)
• Body Pattern: Straight-through
• Opening Characteristics: Standard Opening
• Pressure Ratings (psi): 1/2 psi
• Pressure Ratings (kPa): 3.5 kPa
• Inlet/Outlet Size (in.): 1/2 in. x 3/4 in.
• Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
• Pressure Tapping: 1/8 in. NPT with plug
• Type of Fuel: Natural (LP with included conversion kit)
• Capacity (kBtuh): At 1 in. wc p.d.-- 190,000 BTUh: 30,000 BTUh minimum: 290,000 BTUh maximum Natural Gas
• Pressure Regulator: Standard
• Pressure Regulator Setpoint (in. wc): 3.5 in. WC
• Pressure Regulator Setpoint (kPa): 0.87 kPa
• Ignition Type: Standing Pilot

INCLUDES

• Q340 Thermocouple
• Natural to LP Conversion Kit
• One 3/4" x 1/2" reducer bushing
• 3/4" straight flange
• ECO adapter
