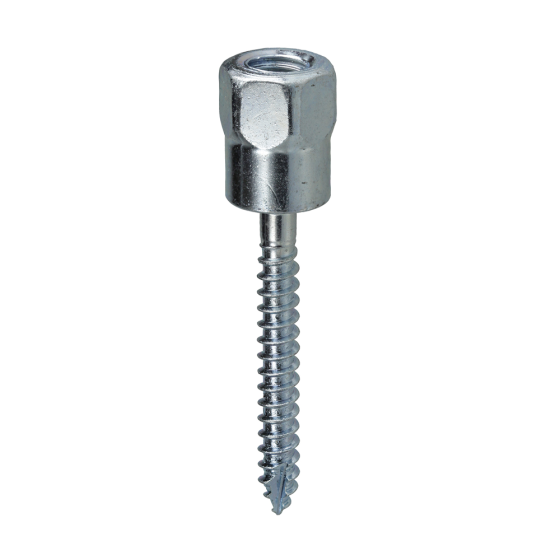

Wood Rod Hanger, Vertical, 2-1/2 in. L, 3/8 in.

APPLICATIONS

Wood Rod Hangers are carbon steel fasteners used in overhead applications where threaded rod is intended to be suspended. They are manufactured with a type-17 tip to provide easy installation in wood frame columns and beams. Suitable applications for use are electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment. For proper installation instructions and weight loads, reference the technical data sheet.

FEATURES & BENEFITS

• Point Style: Type 17
• Thread Type: AB
• Screw Size: 5/16'' x 2-1/2''
• Rod Size: 3/8''
• Head Diameter: 5/8''
• Shank Length: 2-1/2''
• Thread Pitch/Thread Per Inch: 3/8''-16
• Material: Carbon Steel
• Finish: Zinc Plated
• Mount Style: Bottom
