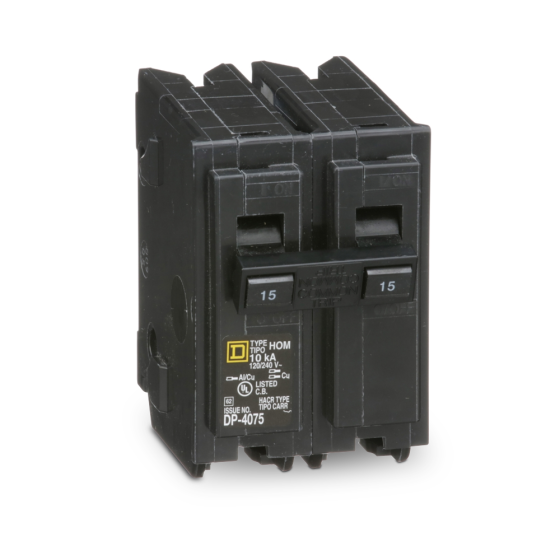

Homeline circuit breakers provide the high level of protection you expect from Square D. No other name in circuit protection is more trusted for reliability and performance than Square D. These are the only breakers accepted in genuine Square D Homeline Load Centers.
FEATURES & BENEFITS
• Current Rating: 15 A • Certifications: UL Listed • Voltage Rating: 120/240 V AC • Mounting Type: Plug-in • Number of Poles: 2P • Short Circuit Current Rating: 10 kA • Number of Spaces: 2 • Circuit Breaker Type: Standard • Ratings: HACR rated • Electrical Connection: Clamp terminal for 2 cables • Wire Size: AWG 14...AWG 8 aluminum/copper)1 AWG 14...AWG 10 copper)2 • Tightening torque: 35.40 lbf.in (4.0 N.m) 0.00...0.02 in² (2.5...10 mm²) (AWG 16...AWG 14) 35.40 lbf.in (4.0 N.m) 0.01...0.03 in² (4...20 mm²) (AWG 12...AWG 4) • Height: 3.13 in (79.50 mm) • Width: 2 in (50.80 mm) • Depth: 2.98 in (75.69 mm) • Ambient air temperature for operation: 104 °F (40 °C)
