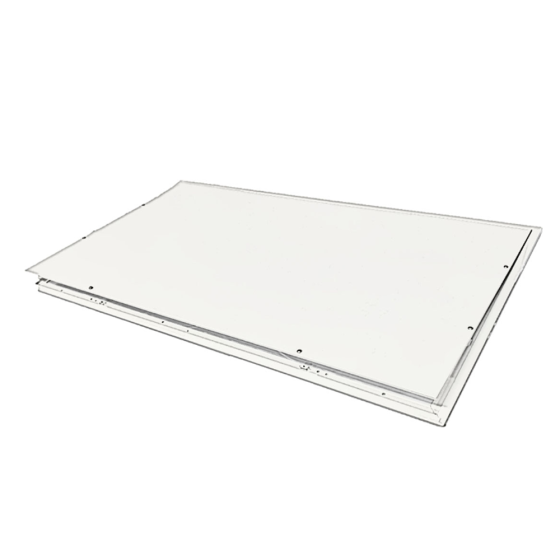

Solid Access Panel 44-1/4 in. x 28-3/4 in.

Item

CAP44252875-S

FEATURES

Solid Panels designed for easy access to controls and refrigerant connections on VRF and Inverter Split Soffit Mount Units.

Design

• Interior Panel Braces

• Integrated clips in frame

• Engineered low Pressure louver design

Materials

• Heavy Gauge galvanized steel construction with off-white powder paint finish

• Stainless steel screws with retainers

Packaging

• Individually wrapped and boxed

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	8
Exterior Dimensions (D) (inches)	32.000000
Exterior Dimensions (W) (inches)	48.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	8.000000
