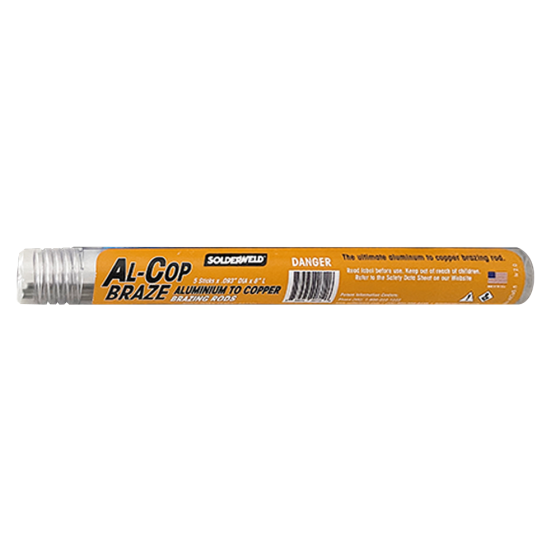

Solderweld® Al-Cop Braze™ Brazing Rods Aluminum to Copper/Brass 0.09" x 8" (5 pk)

APPLICATIONS

Al-Cop Braze™ is used to join aluminum and copper. It has a low melting point and narrow melt range; suitable for brazing aluminum alloys. High zinc content relative to other aluminum filler metals provides increased wettability.

SPECIFICATIONS

• HVAC applications with Brass, Copper, Aluminum and Steel
• Is effective with any of these heat sources: Oxy-acetylene torch, Natural gas torch, MAPP Gas, Induction
• Joining all brazable grades of aluminum and copper; Aluminum to Aluminum or Aluminum to Copper wire pigtail splices; Aluminum to Copper, Aluminum to Brass or plated terminals
• Solution temperature during heat treating must be below the solidus of the braze alloy in order to ensure integrity of the joint is maintained.
• Where it is desirable to attain flow into tight capillary joints
• Quantity per pack: 5 EA
• Package Weight: 0.08 lbs.
• Rod Length: 8 inches
• Packaging: 8.35 x.09 dia plastic tube
• Shelf Life: 2 years at ambient temp.
• Density (Lbs/in³): 0.19
• Recommended Brazing Temp.: 950-1000°F (510-537°C)
• Liquidus: 905°F (471°C)
• Solidus: 826°F (441°C)
• Appearance: Silver-Colored with White Flux Channel
