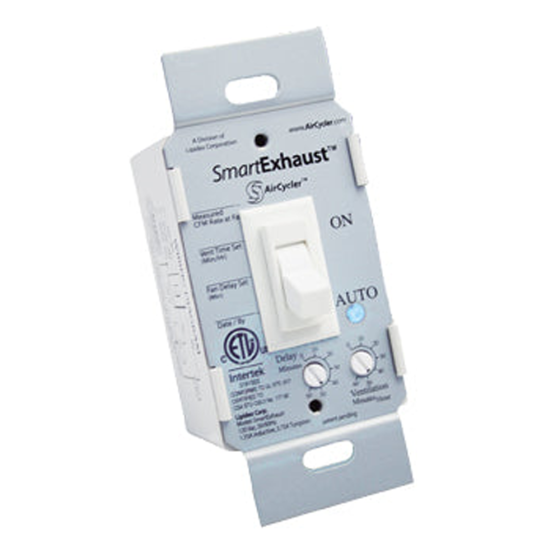

SmartExhaust™ Bath & Fan Light Switch

FEATURES

The SmartExhaust™ Bath Fan/Light ASHRAE Switch is a simple and efficient solution for achieving adequate bathroom ventilation and meeting exhaust ventilation requirements like ASHRAE 62.2. The SmartExhaust™ is designed to replace the bathroom fan and light switches and serves as a ventilation controller and fan delay timer, featuring programmable settings for running the exhaust fan as much or as little as you want, automatically. This product provides whole house exhaust ventilation.

With other fan and light switches, the time that someone is occupying the bathroom does not always provide sufficient run time for the fan to eliminate bathroom humidity or contaminants. Using the SmartExhaust™ Ventilation and Delay settings, the fan can be set to run on a timer so that adequate ventilation can be met even after someone exits the bathroom.

Ventilation and Delay Settings
Using the Ventilation setting, the user is able to set the number of minutes per hour that the bathroom exhaust fan should run to achieve desired/required ventilation.
Using the Delay setting, the user is able to set the number of minutes the fan should run after the SmartExhaust™ switch has been turned off. When the switch is turned off, the fan continues to run for the set delay time.

SPECIFICATIONS

• Light: 450 Watts @ 120 VAC (Blue Wire)

• Fan: 150 Watts @ 120 VAC (Red Wire)

• Operation: 120 VAC 60hz ± 10% (Red Wire)

• 2.5” Minimum wall box recommended

• Cover plate not included, use any standard switch plate
