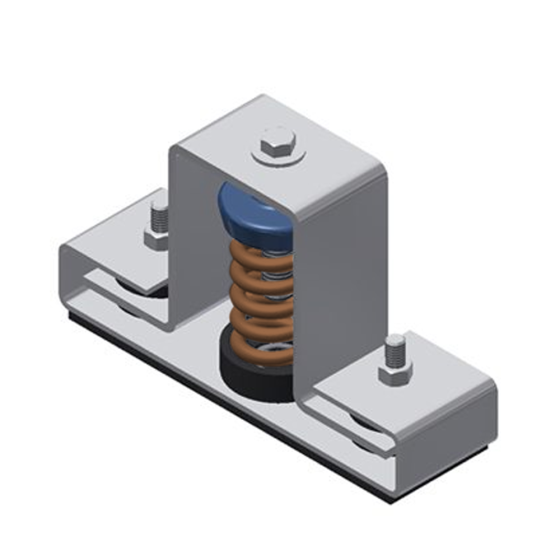

Mason Industries Single Spring Isolation Mount, 3/8", 1.33" Deflection, 125lbs.

Item
SLR-A-125
  • California Prop 65

APPLICATIONS

Restrained spring mountings have an SLF mount within a rigid housing that includes vertical limit stops to prevent spring extension when weight is removed. The housing serves as blocking during erection. Installed and operating heights are equal. Restraining Bolts have a neoprene bushing between the bolt and the housing. A clearance of 1/4” (6mm) shall be maintained around restraining bolts and the bushing so as not to interfere with the spring action. Limit stops should be out of contact during normal operation. Since housings will be bolted or welded in position there must be an internal isolation pad. Housing are designed to resist all seismic forces. Mountings have an OPA preapproval from OSHPD in the state of California certifying the maximum certified horizontal and vertical load ratings.

FEATURES & BENEFITS

• Rated Capacity (lbs.): 125
• Rated Deflection (in.): 1.33
• Spring Constant (lbs/in): 94
• Maximum Horizontal Static G Rating: 6.40
• Cap Screw Size: 3/8” x 1”
• Bolt Diameter: 3/8”
• Spring Color: Brown

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 5.000000
Exterior Dimensions (W) (inches) 4.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 1.000000
