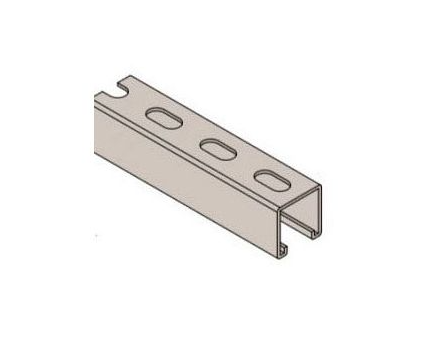

Slotted Strut Channel 1-5/8" x 1-5/8" x 10', 12 Gauge
Item
W200SSPG10
FEATURES
Channels: Type - Metal Framing; Configuration - Single; Material - Steel; Finish - Pre-Galvanized; Height - in - 1-5/8; Width - in - 1-5/8; Gauge - 12; Holes - Slots-Back, 9/16"x1-1/8", 2"OC; Length - 10-ft; Manufacturer Series - W200
SPECIFICATIONS
• Type: Metal Framing• Configuration: Single
• Material: Steel
• Finish: Pre-Galvanized
• Height: 1-5/8 in.
• Width: 1-5/8 in.
• Gauge: 12 Gauge
• Holes: Slots-Back, 9/16 in.x1-1/8 in., 2 in.OC
• Length: 10 ft.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 30 | Exterior Dimensions (D) (inches) | 120.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 30.000000 |
