Just Better® Vacuum Rated Valve Core Removal Tool with Slide Valve Side Port and Torque Setting 1/4"
Item
A32525SVT
FEATURES

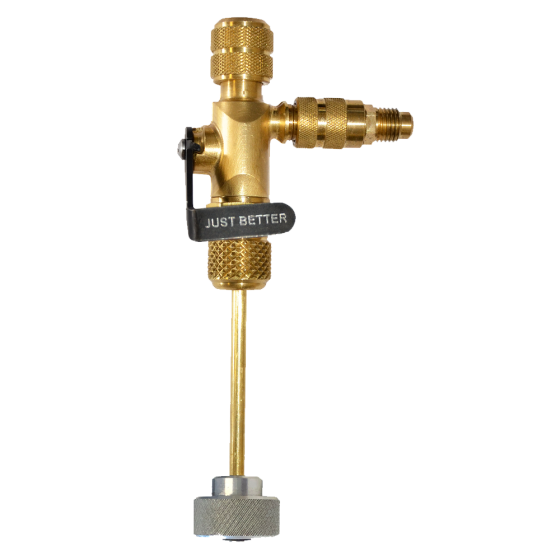

Designed with the daily job of technicians in mind, the A32525SVT valve core removal tool utilizes an additional slide valve side port to accommodate a vacuum gauge. Primary function is to remove and replace the valve core under pressure and/or to remove valve cores in refrigeration systems to increase evacuation and charging performance.
• Designed with the daily job of technicians in mind—The A32525SVT* valve core removal tool utilizes an additional slide valve side port to accommodate a vacuum gauge.• Primary function is to remove and replace the valve core under pressure and/or to remove valve cores in refrigeration systems to increase evacuation and charging performance.
• Swap out damaged valve cores under pressurized air conditioning and refrigeration systems for much faster evacuation
• Slide valve side port valve provides an excellent location to attach a vacuum gauge so system can be checked for absence of moisture and air
• Slide valve side port provides an easy open/close so vacuum gauge can be removed without the introduction of air into the system before charging
• Protect sensitive vacuum gauge sensors when left on during the charging process by closing slide valve side port
• In-line actuated handle with the valve allowing the contractor to open and close the valve in tight areas with a single finger
• Uses a series of O-rings and precision machining to stay sealed and not leak during evacuation
• Solid brass construction with the tip machined from A2 tool steel extends product life
• A32525SVT automatically sets torque 3 to 5 in-lb.
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | .5 | Exterior Dimensions (D) (inches) | 3.250000 | Exterior Dimensions (W) (inches) | 2.250000 | Exterior Dimensions (H) (inches) | 4.500000 | Shipping Weight (lbs) | 1.000000 |
