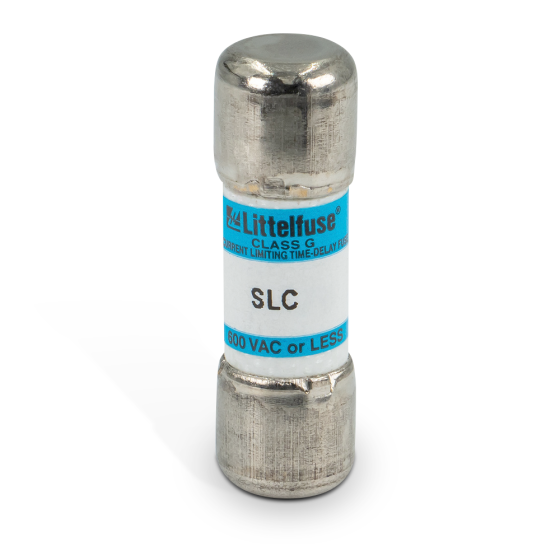

Time-Delay Fuse 10a, 600Vac (Class G)
Item
SLC10
APPLICATIONS
The SLC Series Current-Limiting Branch Circuit Rated fuses provide cost effective branch circuit protection. Fuse length varies to prevent over-fusing. Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC® requirements for branch-circuit protection.
FEATURES & BENEFITS
• Voltage Ratings 600 VAC (1/2 – 20 A), 480 VAC (25 – 60 A), 170 VDC (1/2 – 60 A) (Littelfuse self-certified)
• Interrupting Ratings AC: 100 kA rms symmetrical, DC: 10 kA
• Ampere Range: 10
• Approvals Standard 248-5, Class G
• UL Listed (File: E81895)
• CSA Certified (File: LR29862)
• Federal Specification WF-1814
• (QPL-W-F-1814)
• Environmental RoHS Compliant
• Branch circuit rated
• Current-limiting
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 10 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.74 | Exterior Dimensions (D) (inches) | 0.880000 | Exterior Dimensions (W) (inches) | 0.020000 | Exterior Dimensions (H) (inches) | 0.420000 | Shipping Weight (lbs) | 0.740000 |
