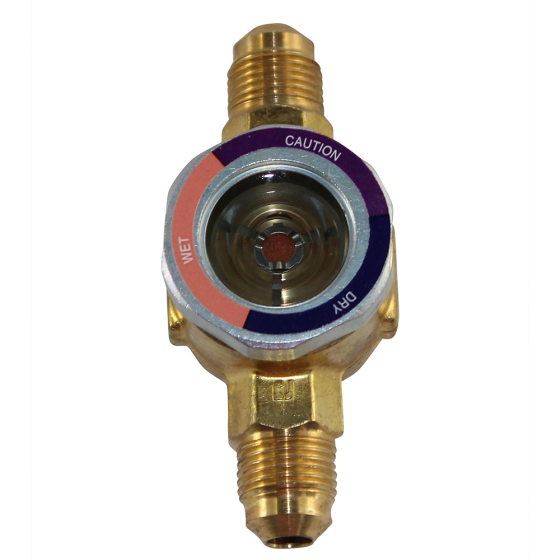

Sight Glass/Moisture Indicator 3/8" SAE Male Flare x 3/8" SAE Male Flare
Item
AMI1MM3
PRODUCT DETAILS
The AMI is designed to provide an accurate method of determining the moisture content of a system's refrigerant. The AMI has a unique high accuracy moisture indicator for CFC, HCFC and HFC refrigerants.
FEATURES & BENEFITS
• Highest sensitivity moisture indicator available.• Take-Apart design for easy repair.
• Single indicator for all common refrigerants.
• Accurate color calibration at low ppm levels and higher temperatures.
• Wide angle viewing/high visibility window for ease of monitoring.
• Solid copper connections.
• Inlet Connection Size: 3/8” Flare M
• Outlet Connection Size: 3/8” Flare M
• Maximum Working Pressure: 680 psig
• Approvals: UL/CUL File Number SA9566
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
