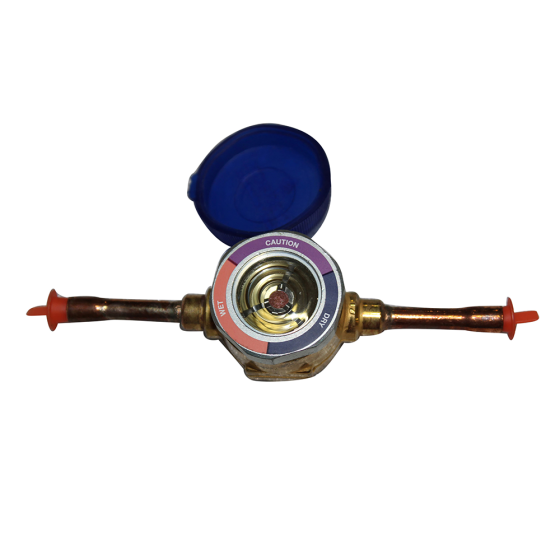

Sight Glass/Moisture Indicator 1/4" ODF x 1/4" ODF (Extended Ends)

Item
AMI1TT2
  • California Prop 65

PRODUCT DETAILS

The AMI is designed to provide an accurate method of determining the moisture content of a system's refrigerant. The AMI has a unique high accuracy moisture indicator for CFC, HCFC and HFC refrigerants.

FEATURES & BENEFITS

• Highest sensitivity moisture indicator available
• Take-Apart design for easy repair
• Single indicator for all common refrigerants
• Accurate color calibration at low ppm levels and higher temperatures
• Wide angle viewing/high visibility window for ease of monitoring
• Solid copper connections
• Inlet Connection Size: 1/4” ODF
• Outlet Connection Size: 1/4” ODF
• Maximum Working Pressure: 680 psig
• Approvals: UL/CUL File Number SA9566

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 8.000000
Exterior Dimensions (W) (inches) 3.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 1.000000
