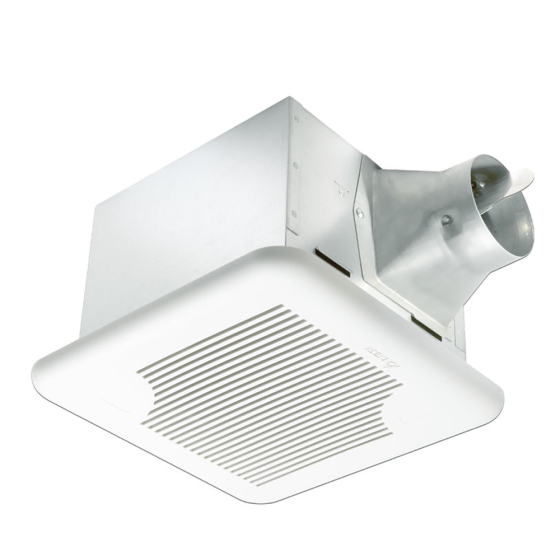

The Delta BreezSignature SIG80 ENERGY STAR® Certified Ventilation Fan offers the full package of performance and control. The exceptional reliability of Delta’s DC brushless motor is combined with control options including humidity sensing, motion sensing and adjustable continuous low speed down to 30 CFM. BreezSignature boasts sound ratings of less than 0.3 Sones and operating efficiencies that far exceed ENERGY STAR v4.0 Residential Ventilating Fan requirements. Multiple control options are available.
FEATURES & BENEFITS
• Energy Star® Certified with innovative brushless DC motor technology • Quiet operation at less than 0.3 Sones • UL approved for ceiling mount ventilating fan for continuous running • Energy efficiency at 9.8 CFM/Watt • Green LED indicator light to show power is on • Airflow (CFM @ 0.1 SP): 80 • Sones: 0.3 • Power Consumption (Watts): 8.7 • Energy Efficiency (CFM/Watts): 9.7 • Current (Amps): 0.30 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
Housing • Galvanized steel body • Detachable 4” Round metal duct adapter • Built-in backdraft damper • Easy installation with expandable extension bracket
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
LED Indicator • Turn the power switch on/off to operate on/off. LED indicator will be green when power is on
