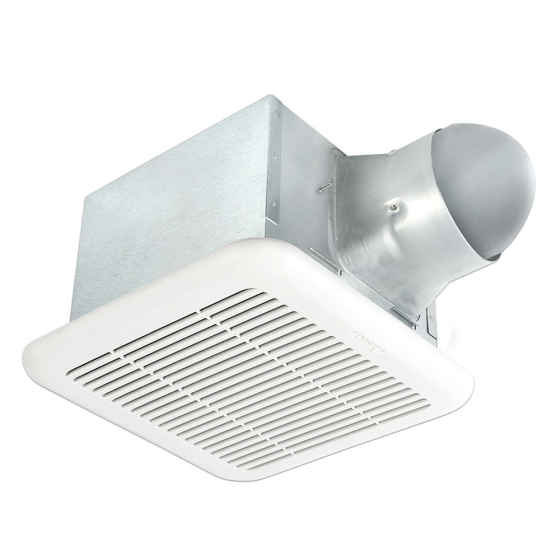

Delta BreezSignature ENERGY STAR® Certified Ventilation Fan 4 in. or 6 in. Round Duct, 80 to 110CFM, 0.3 Sones, 120Vac (Multi-Speed)

Item
SIG80-110
  • California Prop 65

APPLICATIONS

The Delta Breez SIG80-110 ENERGY STAR® Certified Exhaust Motor with brushless DC motor is engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of less than 0.3 Sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.2 Watts with efficiency rating of 15.3 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

FEATURES & BENEFITS

• Energy Star® Certified with innovative brushless DC motor technology
• Perfectly quiet operation at less than 0.3 Sones
• Full speed adjustable, 80 CFM or 110 CFM
• Includes 6" to 4" duct reducer
• Energy efficiency at 15.4 CFM/Watt
• LED indicator light will be green when power is on
• Airflow (CFM @ 0.1 SP): 80/110
• Sones: 0.3
• Power Consumption (Watts): 8.2
• Energy Efficiency (CFM/Watts): 15.3
• Current (Amps): 0.38 Max
• Power Rating (Vac/Hz): 120/60

DC Motor/Blower
• Power rating of 120 volts/60Hz
• Brushless DC motor engineered to run continuously
• Motor equipped with thermal cutoff fuse
• Removable with permanently lubricated plug-in motor
• Full speed adjustable, 80 or 110 CFM
• Built-in soft start function to increase bearings’ life
• Automatically powers OFF when impeller is locked abnormally
• Self-compensating motor speed for intended airflow when static pressure is encountered

Housing
• Galvanized steel body
• Detachable 6” Round metal duct adapter
• Includes 6” to 4” duct reducer
• Built-in backdraft damper
• Easy installation with expandable extension bracket

Grille
• Attractive design using ABS material
• Attaches directly to housing with torsion springs

LED Indicator
• Turn the power switch on/off to operate on/off. LED indicator will be green when power is on

• 3-Year limited warranty

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 10
Exterior Dimensions (D) (inches) 9.700000
Exterior Dimensions (W) (inches) 9.700000
Exterior Dimensions (H) (inches) 7.300000
Shipping Weight (lbs) 13.000000
Specification
CFM 110
