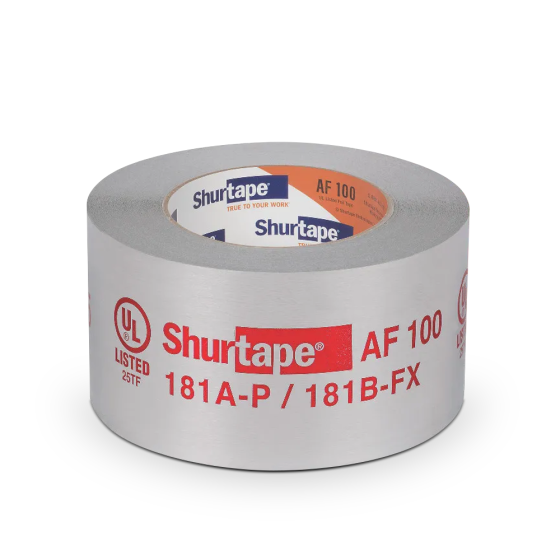

Shurtape® AF 100 UL 181A-P/B-FX Listed/Printed Aluminum Foil Tape 2.5", 60 Yards, 6.8 mil (Silver)
APPLICATIONS
UL 181A-P/B-FX Listed aluminum foil HVAC tape for joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct. A tape that "does it all," AF 100 is engineered to form airtight bonds on joints and seams in temperatures ranging from -20 F to 260 F and in humid conditions to deliver full system closure. As a UL 181A-P listed product, AF 100 can be used in place of a mechanical fastener on rigid ductboard.
FEATURES & BENEFITS
• For joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct
• Can also be used when repairing metal and sheet metal
• Available with traditional liner or EasyPEEL ® split liner technology
• Excellent adhesion to rigid fiberglass ductboard and flexible air duct
• Flexible and easy to create airtight bonds
• Superior stability during extreme fluctuations in temperature
• Resists water vapor and other HVAC duct contaminations
• Indefinite product life after application
• Overall Grade/Function: HVAC, UL 181A-P/B-FX Listed
• Backing: 2 mil, dead-soft aluminum foil
• Adhesive: Acrylic-based
• Liner: Non-contaminating, siliconized, flat, white, paper release liner
• Tensile Strength: 25 lbs./in width 43.8 N/10 mm
• Adhesion to Stainless Steel: 70 oz/in width 7.66 N/10 mm
• Thickness (With Liner): 6.8 mils 0.17 mm
• Thickness (Without Liner):4.2 mils 0.11 mm
• Elongation: 2% 2%
• Service Temperature Range: -20 F to 260 F -29 C to 127 C
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 3.000000 |
