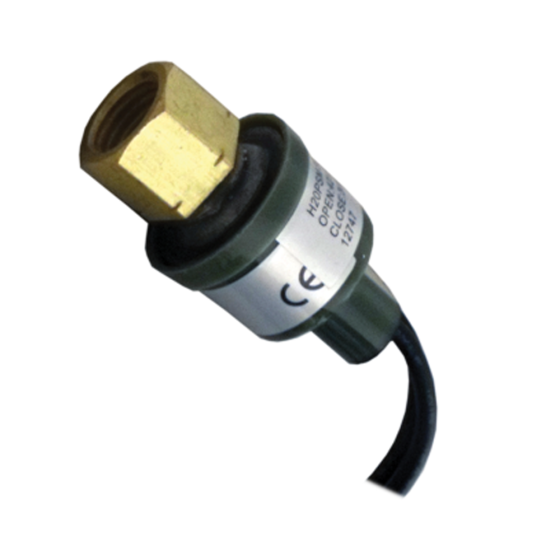

High-Pressure Switch

FEATURES & BENEFITS

• High pressure switch opens on pressure rise
• Rated Voltage 24/120/240 VAC @ 50/60 Hz
• Life at rated load: 100,000 cycles
• ¼" SAE 45° female flare fitting with valve core depressor
• Snap acting stainless steel hermetically sealed sensor
• Small size and light weight for direct mounting
• Excellent set point repeatability/stability
• Wire is 18 AWG, 18" long
• Open PSI: 610 PSI
• Tolerance: +/- 15 PSI
• Close PSI: 420 PSI
• Burst Pressure: 2800 PSI
• Maximum Operating Pressure: 700 PSI
• Maximum Temperature: -31°F to 149°F (-35°C to 65°C)
• Maximum LRA: 17.4 Amps @ 240VAC
• Maximum LRA: 34.8 Amps @ 120VAC
• Maximum FLA: 2.9 Amps @ 240VAC
• Maximum FLA: 5.8 Amps @ 120VAC
