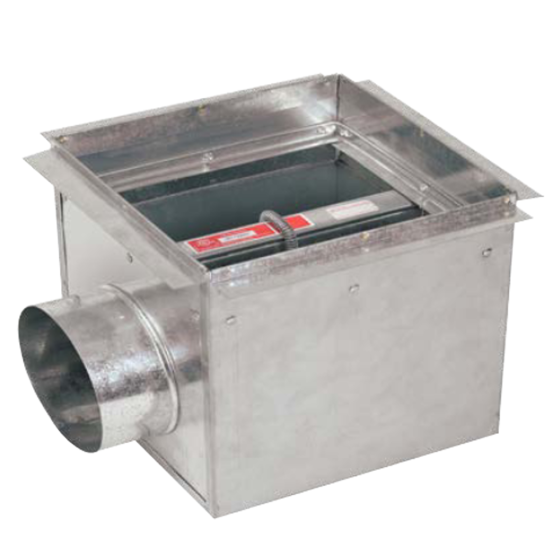

Shoemaker 2700CBA 8" Ceiling Radiation Damper with Register Box Assembly 12" x 12"
Item
2700CBA-12X12X8
FEATURES & BENEFITS
• Factory assembled plenum box with side outlet and square or rectangular ceiling radiation damper
• UL rated for floor/ceiling and roof/ceiling wood truss assembliesL-521, L-528, L-546, P-522, L-563, L579 and P-544 types
• Meets UL263 and NFPA 90A requirements
• CSFM California State Fire Marshall listed
• 165° fusible link
• 22 gauge galvanized steel blades with ceramic fiberglass cover*
• Roll formed 22 gauge galvanized steel frame
• Plenum outer box made of 28 gauge galvanized steel
• Roll formed 28 gauge galvanized steel collar with 1/4” bead
• Fiberglass duct board 1-1/2” thick (R6)
| Specification | |
|---|---|
| Fitting Type | Dampers & Disks | Fitting Size | 8" | Fitting Sub Type | Radiation Dampers |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 7.000000 |
