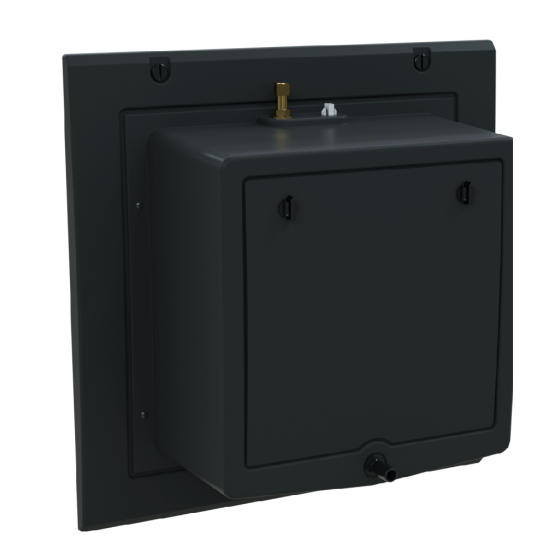

Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200

Item
99H0173-00
  • California Prop 65

FEATURES

The Sentinel Series integrated humidifier is powered directly from a Wine Guardian ducted or ducted split system; no separate power source required. The humidifier can be integrated with the following systems: D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200.

Integrated Wine Guardian humidifiers add moisture to the air at the wine cellar cooling system rather than directly in the wine space. These humidifier units attach directly to either side of Wine Guardian ducted or ducted split cooling systems. Suggested humidity maximum humidity is 60% relative humidity.

To achieve relative humidity above 60% relative humidity, we recommend using a Wine Guardian Freestanding Humidifier, which installs inside a wine space and will add moist air directly.



SPECIFICATIONS

  • • Weight: 10 lbs
  • • Dimensions: 20 × 16 × 14 in
  • • Line Frequency: 60 Hz – US / Canada / Mexico
  • • Capacity at 60°F (16°C): 0.42 lbs/hr
  • • Capacity at 100°F (38°C): 1.0 lb/hr
  • • Power Requirements: 24 Volt
  • • Model: Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200

  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 10
    Exterior Dimensions (D) (inches) 20.000000
    Exterior Dimensions (W) (inches) 14.000000
    Exterior Dimensions (H) (inches) 16.000000
    Shipping Weight (lbs) 10.000000
