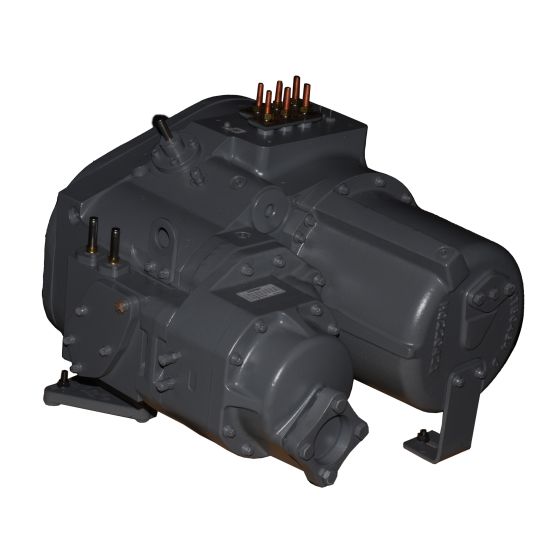

Semi-Hermetic 104mm Geared Twin Screw Compressor, 174CFM, 460Vac, Three Phase (Water Cooled Condensing)

FEATURES & BENEFITS

• Compressor Package: New Compressor (Water Cooled Condensing)
• Voltage: 460Vac
• Three Phase
• Hertz: 60
• Maximum Displacement (CFM): 174
• Design Variables: Economized
• The 104mm Geared Twin Screw compressor is specifically designed for use in R134a systems only.
• The Geared Twin Screw 104mm screw compressor is approved for use with the following lubricants:

Carrier Material Spec: PP47-13, PP47-14, PP47-32 and PP47-34
Approved Lubricant: Castrol SW220
Viscosity Grade: ISO220

Carrier RCD Part Number:
P903-1201 (1gal)
P903-1205 (5gal)

Refer to Carrier’s 30GX, 30HXA, 30HXC Controls Start-Up, Operation Service and Troubleshooting for proper oil charge.
