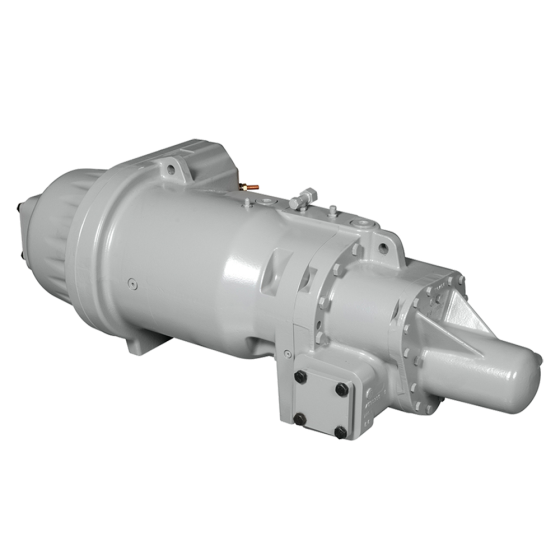

Semi-Hermetic 74mm Geared Twin Screw Compressor, 356CFM, 460Vac, Three Phase
Item
06TTA356SS1C
FEATURES & BENEFITS
• Compressor Package: Air Cooled Condensing• Voltage: 460Vac
• Three Phase
• Hertz: 60
• Maximum Displacement (CFM): 356
• The Paragon screw compressor is specifically designed for use with R-134a, R513a, R1234ze, R404a, R407a, R407c, R407f, R507a, R448a and R449a refrigerants.
• The Paragon screw compressor is specifically designed for use with the following oils:
Medium/High Temperature System Design (ISO220)
Emkarate RL 220H
Emkarate RL 220HC
Totaline® P903-2301 (1gal), P903-2305 (5gal)
Low/Medium Temperature System Design (ISO170)
Solest 170
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 460 |
| Specification | |
|---|---|
| Max Displacement (CFM) | 356 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1714 | Exterior Dimensions (D) (inches) | 35.000000 | Exterior Dimensions (W) (inches) | 37.000000 | Exterior Dimensions (H) (inches) | 73.000000 | Shipping Weight (lbs) | 1714.000000 |
