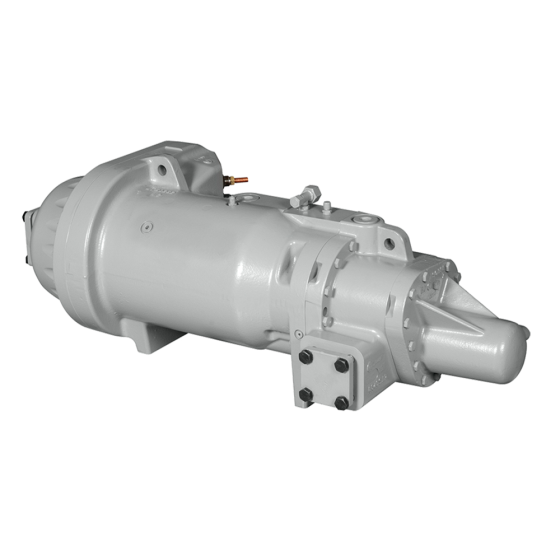

Semi-Hermetic 74mm Geared Twin Screw Compressor, 186CFM, 230Vac, Three Phase
Item
06TSA186XJ1C
FEATURES & BENEFITS
• Compressor Package: Air Cooled Condensing• Voltage: 230Vac
• Three Phase
• Hertz: 60
• Maximum Displacement (CFM): 186
• Design Variables: Plate Mounting Feet
• The Paragon screw compressor is specifically designed for use with R-134a, R513a, R1234ze, R404a, R407a, R407c, R407f, R507a, R448a and R449a refrigerants.
• The Paragon screw compressor is specifically designed for use with the following oils:
Medium/High Temperature System Design (ISO220)
Emkarate RL 220H
Emkarate RL 220HC
Totaline® P903-2301 (1gal), P903-2305 (5gal)
Low/Medium Temperature System Design (ISO170)
Solest 170
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 230 |
| Specification | |
|---|---|
| Max Displacement (CFM) | 186 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1002 | Exterior Dimensions (D) (inches) | 27.000000 | Exterior Dimensions (W) (inches) | 27.000000 | Exterior Dimensions (H) (inches) | 60.000000 | Shipping Weight (lbs) | 1002.000000 |
