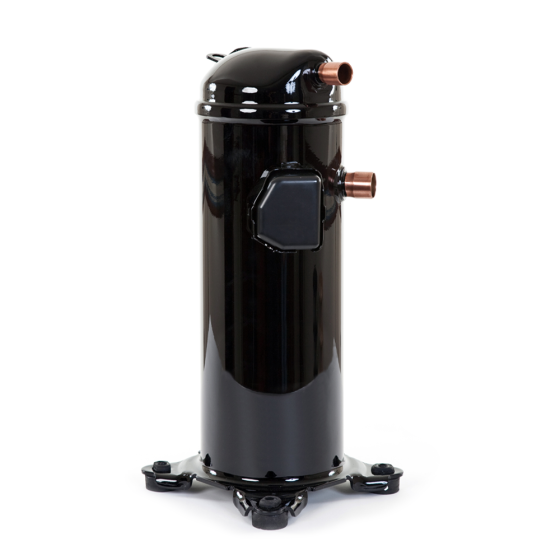

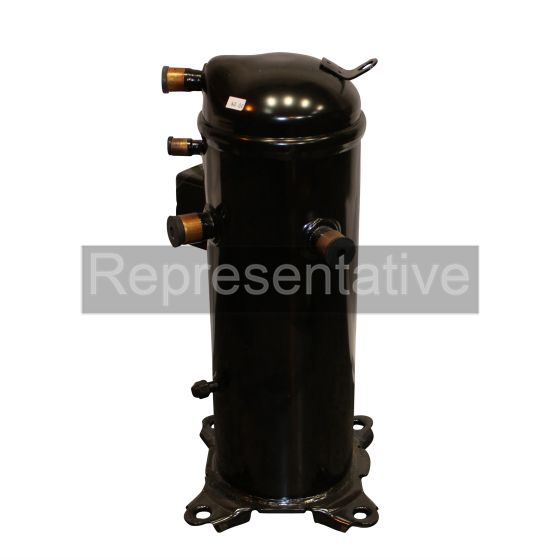

Danfoss Hermetic Scroll Compressor R22, 81,516BTU, 208/230Vac, Three Phase
Item
HLM081T2LC6
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 21.1 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | Suction Line Height | 11.0" | Discharge Line Height | 16.6" | Discharge Line Size | 3/4" | Oil | AB (Alkylbenzene) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 91 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 119.000000 | Shipping Weight (lbs) | 91.000000 |
