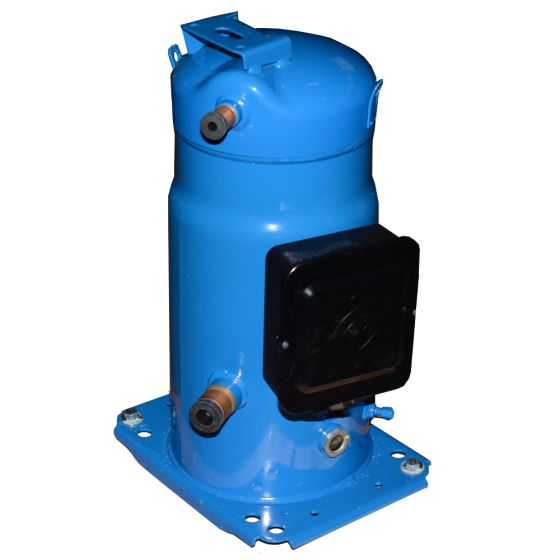

Totaline® Hermetic Scroll Compressor R22, 125,000BTU, 460Vac, Three Phase
Item
SM125-4QAI
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 125,500
• Refrigerant: R22
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 17.9 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 111 to 130kBTU | Suction Line Height | 7.1" | Discharge Line Height | 21.2" | Discharge Line Size | 7/8" | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 24 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 201.000000 | Exterior Dimensions (H) (inches) | 37.000000 | Shipping Weight (lbs) | 24.000000 |
