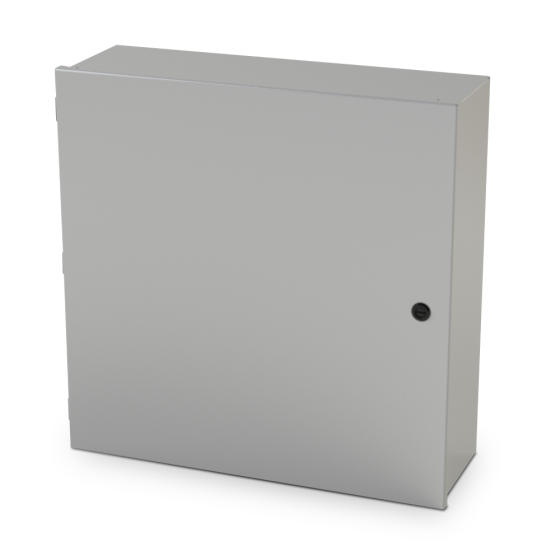

SCE-24N2408LP NEMA-1 Enclosure 24 in. x 24 in. x 8 in.

Item
SCE-24N2408LP
  • California Prop 65

APPLICATIONS

Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.

FEATURES & BENEFITS

• Height: 24.00"
• Width: 24.00"
• Depth: 8.00"
• 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.
• Spot weld construction.
• 1/4-20 Standoffs provided for mounting optional panels.
• Doors open 180 degrees.
• Black quarter turn latches.
• Latches are opened or closed with a screwdriver.
• Ground stud on door.
• Mounting holes in back of enclosure.
• Subpanel mounting hardware.
• Butt Hinge – Black
• NEMA Type 1
• UL Listed Type 1
• CSA Type 1
• IEC 60529
• IP 30
• ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 50
Exterior Dimensions (D) (inches) 24.000000
Exterior Dimensions (W) (inches) 24.000000
Exterior Dimensions (H) (inches) 8.000000
Shipping Weight (lbs) 50.000000
