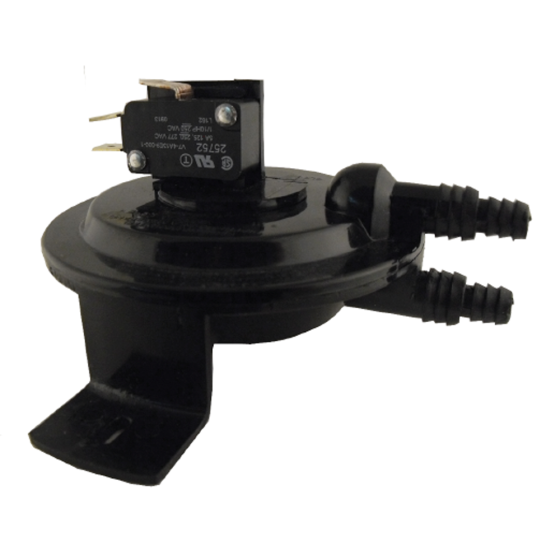

Adjustable Air Pressure Switch
Item
RSS495011
APPLICATIONS
Adjustable air pressure sensing switch kit ideal for residential and light commercial furnace, electric air cleaner and humidifier applications.
FEATURES & BENEFITS
• Adjustable set points
• Convenient kits for aftermarket installation
• Factory set to activate on pressure rise
• SPDT
• UL® & CSA® Approved
• 2 Year warranty
• Operating Temperature Range:: -40 °F to 190 °F
• Pressure range (W.C.): 0.25" to 1.0"
CROSS REFERENCE
• Robertshaw® - 2374-495
• Cleveland Controls® - RSS-495-11
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.14 | Exterior Dimensions (D) (inches) | 4.500000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 2.250000 | Shipping Weight (lbs) | 1.000000 |
