Duro Dyne® Rapit Damper Regulator Set
Item
RS256
APPLICATIONS
The RAPIT is an inexpensive, rattle-free regulator for quick installation on balance or splitter dampers. It is formed from rust-resistant, heavy gauge, galvanized steel and installs in seconds. The Rapit will penetrate and secure to round or rectangular damper blades up to 24-gauge steel. It has a fully retractable bearing of zinc alloy, threaded to accept a 5/16-18 wing nut and a handle that indicates the damper position. It’s as easy to use as 1-2-3.

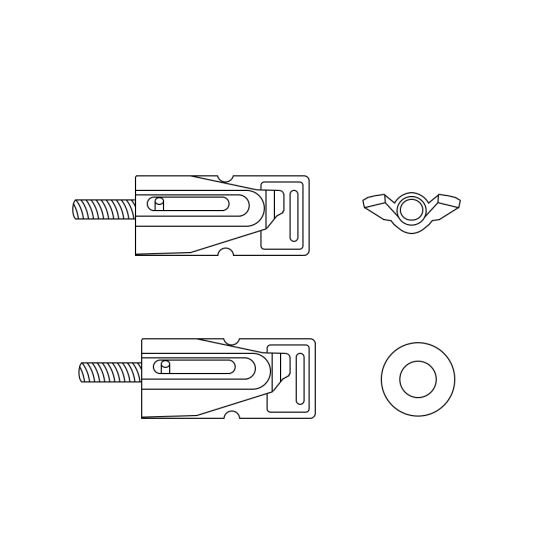

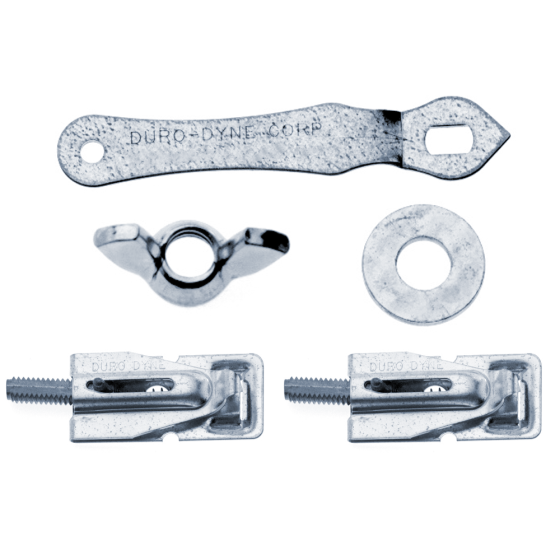

INCLUDES
• Rapit spring bearing (QTY 2)
• Rapit washer
• Rapit wing nut
• Handle
Specification | |
---|---|
Fitting Type | Dampers & Disks | Fitting Sub Type | Regulators |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 3.000000 |
